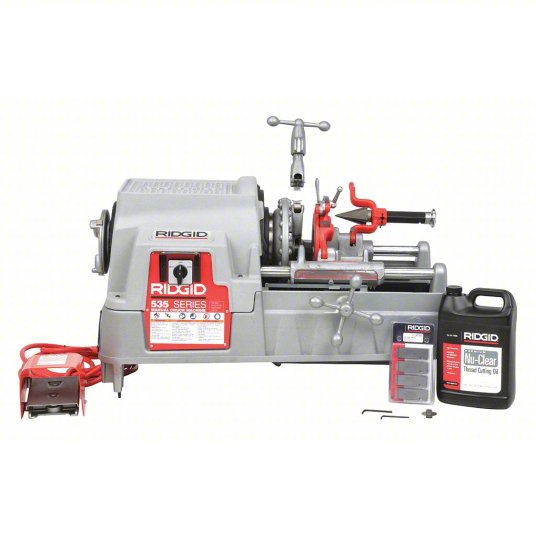

RIDGID Pipe Threading Machine: 535, For 1/8 in to 2 in Pipe, 2 hp, Manual Chuck, 1 Speed, Std, NPT
Stationary pipe threaders offer features that speed production and ease operation compared to portable machines. They sit on a benchtop, stand, or other flat surface or may be placed on a compatible cart for repositioning or moving within a shop. These corded machines allow long run times for repetitive threading tasks, maintain full power during operation, and have no batteries to recharge
Item 3RY43
Mfr. Model 93287
Brand
RIDGID
RIDGID
Max. Pipe Dia.2 in
Min. Pipe Dia.1/8 in
Phase
Single-Phase
Single-Phase
Horsepower2 hp
Chuck TypeManual
Includes
3/16 in Hex Key; 5/32 in Hex Key; Nu-Clear Oil; Quick-Open Right Hand NPT Die Head; Reamer; Wheel Cutter
3/16 in Hex Key; 5/32 in Hex Key; Nu-Clear Oil; Quick-Open Right Hand NPT Die Head; Reamer; Wheel Cutter
No. of Speeds1
Free Speed36 RPM
Motor Type
Standard
Standard
Through-the-Head Oiling
Yes
Yes
Thread Type
NPT
NPT
Max. Bolt Size
2 in
2 in
Min. Bolt Size
1/4 in
1/4 in
Die Head Sizes
1/2 in to 2 in
1/2 in to 2 in
No. of Die Heads
1
1
Head Opening Type
Quick Opening
Quick Opening
Tool Series
535
535
Tool Weight
260 lb
260 lb
Current
15 A
15 A
Features
Chip Tray; Length Gauge
Chip Tray; Length Gauge
Frequency
60 Hz
60 Hz
Kit Contents
Bare Tool
Bare Tool
Machine Type
Stationary Power Threading Machine
Stationary Power Threading Machine
Mount Type
Stand
Stand
Oil Capacity
1.75 gal
1.75 gal
Overall Height
21 in
21 in
Overall Length
37 in
37 in
Overall Width
21 in
21 in
Plug Type
Three-Prong
Three-Prong
Power Output
1,700 W
1,700 W
Power Source
Corded
Corded
Pump Type
Self-Priming Gerotor
Self-Priming Gerotor
Reversible
Yes
Yes
Switch Type
Forward/Off/Reverse and Integral Foot Switch
Forward/Off/Reverse and Integral Foot Switch
Threading Equipment Included
(2) Die Sets; Cutter; Die Head; Reamer
(2) Die Sets; Cutter; Die Head; Reamer
Manufacturer Part Number
93287
93287
Sub-brand
535
535
Voltage
120 V
120 V
UNSPSC
23172013
23172013
Country of Origin
USA
USA
