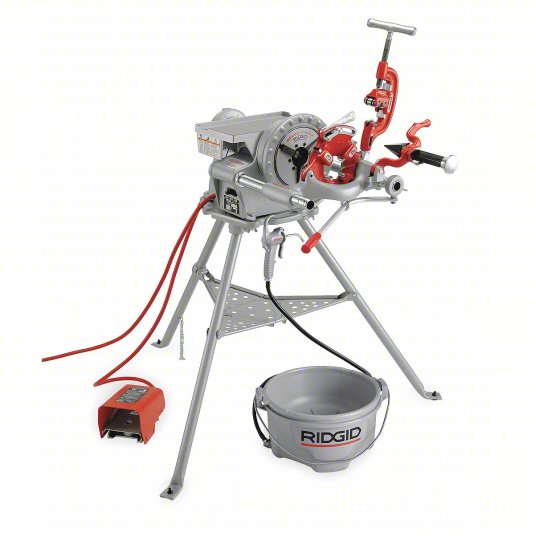

RIDGID Portable Pipe Threading Machine: 300, For 1/8 in to 2 in Pipe, 1/2 hp, Manual Chuck, 1 Speed
Item 4CPC4
Mfr. Model 15722
Portable pipe threading machines are more compact than stationary threaders and light enough to transport to jobsites. These corded machines allow long run times for repetitive threading tasks, maintain full power during operation, and have no batteries to recharge.
Brand
RIDGID
RIDGID
Max. Pipe Dia.2 in
Min. Pipe Dia.
1/8 in
1/8 in
Phase
Single-Phase
Single-Phase
Horsepower1/2 hp
Chuck Type
Manual
Manual
Includes
1 gal Premium Thread Cutting Oil; Carriage with Lever; Clip-On Tool Tray; Full Floating Self Centering Cutter; Oiler; Quick-Open Right Hand NPT Die Head; Reamer; Stand; Transporter
1 gal Premium Thread Cutting Oil; Carriage with Lever; Clip-On Tool Tray; Full Floating Self Centering Cutter; Oiler; Quick-Open Right Hand NPT Die Head; Reamer; Stand; Transporter
No. of Speeds
1
1
Free Speed
57 RPM
57 RPM
Motor Type
Standard
Standard
Through-the-Head Oiling
Yes
Yes
Thread Type
NPT
NPT
Max. Bolt Size
2 in
2 in
Min. Bolt Size
1/4 in
1/4 in
Die Head Sizes
1/2 in to 2 in
1/2 in to 2 in
No. of Die Heads
1
1
Tool Series
300
300
Portability
Portable
Portable
Tool Weight
212 lb
212 lb
Current
18 A
18 A
Features
Rear Centering Device
Rear Centering Device
Frequency
60 Hz
60 Hz
Kit Contents
Bare Tool
Bare Tool
Machine Type
Stationary Power Threading Machine
Stationary Power Threading Machine
Mount Type
Stand
Stand
Oil Capacity
1 gal
1 gal
Overall Length
48 in
48 in
Overall Width
46 in
46 in
Plug Type
Three-Prong
Three-Prong
Power Source
Corded
Corded
Pump Type
Hand Pump
Hand Pump
Reversible
Yes
Yes
Standards
NRTLC; UL Listed
NRTLC; UL Listed
Switch Type
Forward/Off/Reverse and Integral Foot Switch
Forward/Off/Reverse and Integral Foot Switch
Threading Equipment Included
(2) Die Sets; Cutter; Die Head; Oiler; Reamer; Stand
(2) Die Sets; Cutter; Die Head; Oiler; Reamer; Stand
Manufacturer Part Number
15722
15722
Voltage
120 V
120 V
UNSPSC
23171708
23171708
Country of OriginUSA
