RIDGID Pipe Threading Machine: 535A, For 1/8 in to 2 in Pipe, 2 hp, Auto Chuck, 3 Speed, Induction

RIDGID Pipe Threading Machine: 535A, For 1/8 in to 2 in Pipe, 2 hp, Auto Chuck, 3 Speed, Induction

  • Sale
  • $13,715.00

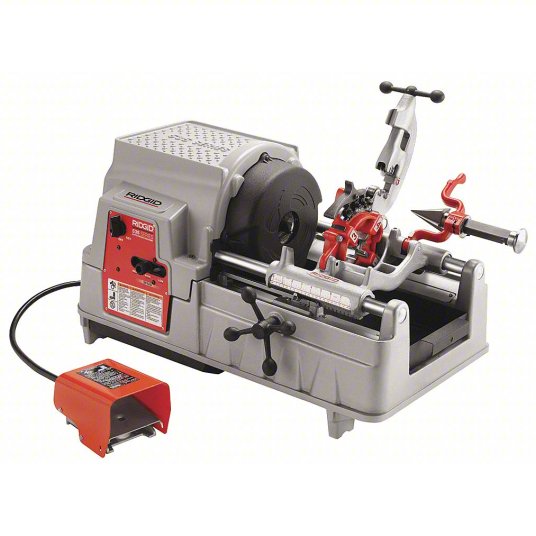

RIDGID Pipe Threading Machine: 535A, For 1/8 in to 2 in Pipe, 2 hp, Auto Chuck, 3 Speed, Induction

Item 4NCV3

Mfr. Model 84097

Stationary pipe threaders offer features that speed production and ease operation compared to portable machines. They sit on a benchtop, stand, or other flat surface or may be placed on a compatible cart for repositioning or moving within a shop. These corded machines allow long run times for repetitive threading tasks, maintain full power during operation, and have no batteries to recharge.

Brand
RIDGID
Max. Pipe Dia.2 in
Min. Pipe Dia.1/8 in
Phase
Single-Phase
Horsepower2 hp
Chuck TypeAutomatic
Includes
(2) Hex Wrenches; 1 gal Extreme Performance Thread Cutting Oil; Cutter; Cutter Wheel; Reamer; Universal Die Head
No. of Speeds3
Free Speed16 RPM; 46 RPM; 58 RPM
Motor Type
Induction
Through-the-Head Oiling
Yes
Thread Type
NPT
Max. Bolt Size
2 in
Min. Bolt Size
1/4 in
Die Head Sizes
1/2 in to 2 in
Tool Series
535A
Tool Weight
350 lb
Current
18 A
Features
Length Gauge
Frequency
60 Hz
Kit Contents
Bare Tool
Machine Type
Stationary Power Threading Machine
Mount Type
Stand
Oil Capacity
1.75 gal
Overall Height
21 in
Overall Length
37 in
Overall Width
21 in
Plug Type
Three-Prong
Power Output
1,500 W
Power Source
Corded
Pump Type
Self-Priming Constant Flow Gerotor
Reversible
Yes
Standards
CSA Certified; NRTLC; UL Listed
Switch Type
Forward/Off/Reverse and Integral Foot Switch
Threading Equipment Included
(2) Die Sets; Cutter; Die Head; Reamer
Manufacturer Part Number
84097
Sub-brand
535
Voltage
120 V
UNSPSC
23171708
Country of Origin
USA (subject to change
