Brand
Lenovo
Product Line

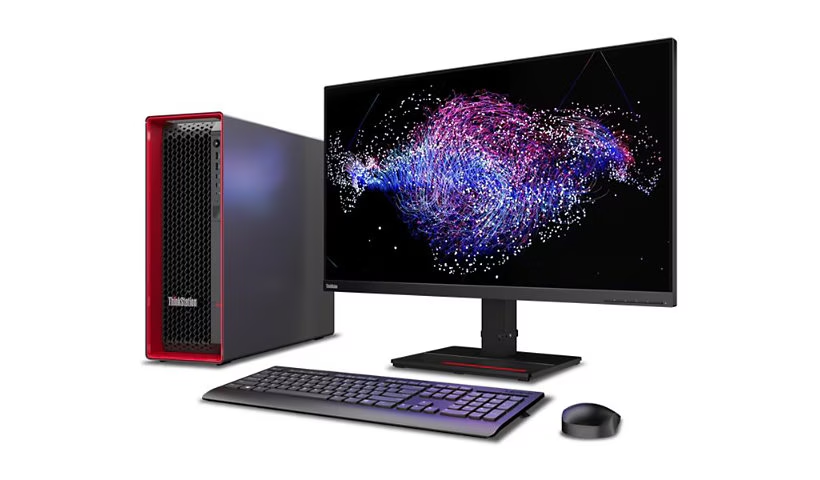

ThinkStation P5
Model
30GA
Manufacturer
Lenovo Topseller Desktops

ProcessorArrow Down
Clock Speed
3.1 GHZ
Cores
16-core
Max Turbo Speed
4.7 GHZ
Platform Technology
Intel vPro Enterprise
Processor Brand
Intel
Processor Number
W5-2465X
Processor Socket
FCLGA4677 Socket
Processor Type
Xeon
Processors Installed
1
Total Processor Supported
1

MemoryArrow Down
Available Memory Slots
4
Cache Memory Installed
33.75 megabyte
Configuration Features
4 x 16 GB
Data Integrity Check
ECC
Features
Registered
Max Memory Supported
512 GB
Memory Card Reader
15 in 1 card reader
Memory Slots
8
Memory Technology
DDR5 SDRAM, GDDR6 SDRAM
RAM Installed
64 GB

StorageArrow Down
Drive Interface
PCI Express 4.0 x4
Drive Type
No optical drive
Hard Drive Capacity
2 TB
Hard Drive Features
NVM Express (NVMe), Performance, TCG Opal Encryption
Installed Quantity
1
Interface Class
PCI Express
Optical Drive Type
No optical drive, None
Optical Drive Type (2nd)
None
RAID Levels
RAID 0, RAID 1, RAID 5
SSD Form Factor
M.2 2280
Storage (2nd)
None
Storage (3rd)
None
Storage (4th)
None
Storage Controller (2nd)
NVM Express
Storage Controller Type
RAID
Type
None
Hard Drive Interface Type
SSD

Display & GraphicsArrow Down
Display Technology
None.
Graphics Controller Model
NVIDIA RTX 5000 Ada
Graphics Processor Series
NVIDIA RTX
Privacy Technology
None
Touchscreen
No
Video Interfaces
DisplayPort

AudioArrow Down
Audio Input Type
None
Compliant Standards
High Definition Audio

VideoArrow Down
Installed Size
32 GB

ConnectivityArrow Down
Interface Provided
1 x audio line-in (1 rear), 1 x audio line-out (1 rear), 1 x headphones/microphone (1 front), 1 x LAN (Gigabit Ethernet) (1 rear), 1 x USB 3.2 Gen 2 (1 front) (Always On), 1 x USB-C 3.2 Gen 2x2 (1 rear), 2 x USB 2.0 (2 rear), 2 x USB-C 3.2 Gen 2 (2 front) (data only), 4 x DisplayPort 1.4a, 4 x USB 3.2 Gen 2 (1 front, 3 rear)

Network & CommunicationArrow Down
Data Link Protocols
Bluetooth 5.1, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet Controllers
Intel I219-LM
Features
Dual stream (2x2), Intel Active Management Technology (AMT) 16, Wake On LAN (WOL)
Wireless LAN
802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.1
Wireless LAN Supported
Yes
Wireless NIC
Intel Wi-Fi 6E AX 211

Technical Information Arrow Down
Built-in Devices
4-digit diagnostic display, Speaker
Chipset Type
Intel W790
Efficiency
92%
Embedded Security
Discrete Trusted Platform Module (TPM 2.0) Security Chip
Form Factor
Tower
Form Factor (RAM)
DIMM 288-pin
Storage Controller Interface
Serial ATA-600
Input Device Type
Keyboard, Mouse
Interface
USB
Max Operating Temperature
95 degree Fahrenheit
Min Operating Temperature
50 degree Fahrenheit
Mouse Name
Lenovo Calliope Mouse
Operating Humidity
20 - 80%

Product InformationArrow Down
Controller Interface Type
PCI Express
Controllers Included
1
Country
United States
Printer Product Type
None
Keyboard Localization
English
Keyboard Name
Lenovo Traditional Keyboard
Keys Layout
QWERTY
Localization
English
Manufacturer Form Factor
Tower
Packaged Quantity
1
Product Type
Workstation
Security Slot Type
Kensington security slot
Service Activation
No
Storage Controller (2nd)
1
Theft Protection
Chassis intrusion switch, Security lock slot (cable lock sold separately)

Expansion Slots Arrow Down
Expansion Bays
2 (total) / 2 (free) x internal 3.5"
Slots
1 (total) / 1 (free) x PCIe 4.0 x8, 2 (total) / 0 (free) x M.2 Card, 2 (total) / 1 (free) x PCIe 5.0 x16, 3 (total) / 3 (free) x PCIe 4.0 x4

ScanningArrow Down
Bundled Services
3 Years Lenovo Premier Support

SoftwareArrow Down
Operating System
Windows 11 Pro
Operating System Edition
Windows 11 Pro for Workstations
Operating System Language
English
Operating System Platform
Windows

PowerArrow Down
Frequency
50/60 hertz
Power Device Type
Power supply
Power Provided
1000 watt
Required Voltage
AC 100-240 volt
80 PLUS Certification
80 PLUS Platinum

Included ItemsArrow Down
Included Accessories
Lock kit (common key)

Physical CharacteristicsArrow Down
Color Category
Black, Red

Dimensions & WeightArrow Down
Height
17.6 inch
Weight
41.89 lbs
Width
6.5 inch
Depth
17.9 inch

Certifications & ListingsArrow Down
Compliant Standards
FIPS 140-2, RoHS, TCG Certified
ENERGY STAR Certified
Yes
Energy Star Version
8.0
Environmental Certification
TCO Certified Desktops 9
EPEAT Compliant
Yes
EPEAT Level
EPEAT Gold
TCO Certified
No
