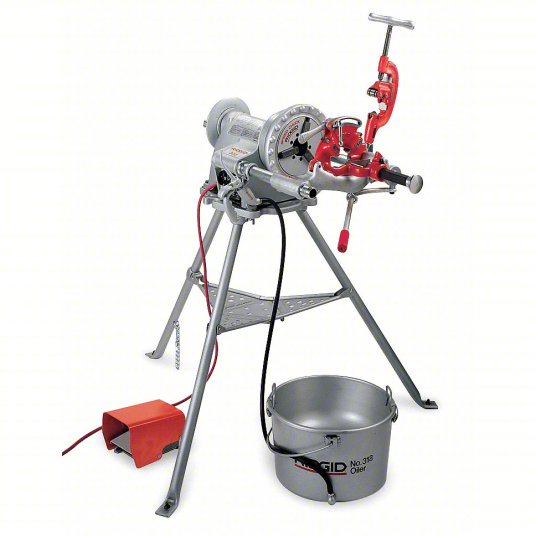

RIDGID Portable Pipe Threading Machine: 300, For 1/8 in to 2 in Pipe, 1/2 hp, Manual Chuck, 1 Speed
Portable pipe threading machines are more compact than stationary threaders and light enough to transport to jobsites. These corded machines allow long run times for repetitive threading tasks, maintain full power during operation, and have no batteries to recharge.
Brand RIDGID
Max. Pipe Dia. 2 in
Min. Pipe Dia. 1/8 in
Phase Single-Phase
Horsepower 1/2 hp
Chuck Typ eManual
Includes1 gal Premium Thread Cutting Oil; Carriage with Lever; Clip-On Tool Tray; Full Floating Self Centering Cutter; Oiler; Quick-Open Right Hand NPT Die Head; Reamer; Stand; Transporter
No. of Speeds1
Free Speed38 RPM
Motor Type Standard
Through-the-Head Oiling Yes
Thread Type NPT
Max. Bolt Size 2 in
Min. Bolt Size 1/4 in
Die Head Sizes 1/2 in to 2 in
No. of Die Heads1
Head Opening Type Quick Opening
Tool Series 300
Portability Portable
Tool Weight212 lb
Current15 A
Features Rear Centering Device
Frequency60 Hz
Kit Contents Bare Tool
Machine Type Stationary Power Threading Machine
Mount Type Stand
Oil Capacity1 gal
Overall Length19 in
Overall Width15.5 in
Plug Type Three-Prong
Power Sourc eCorded
Pump Type Hand Pump
Reversible Yes
Standards NRTLC; UL Listed
Switch Type Forward/Off/Reverse and Integral Foot Switch
Threading Equipment Included(2) Die Sets; Cutter; Die Head; Oiler; Reamer; Stand
Manufacturer Part Number 15682
Sub-brand Ridgid
Voltage120 V
UNSPSC2 7112805
Country of Origin USA (subject to change)
