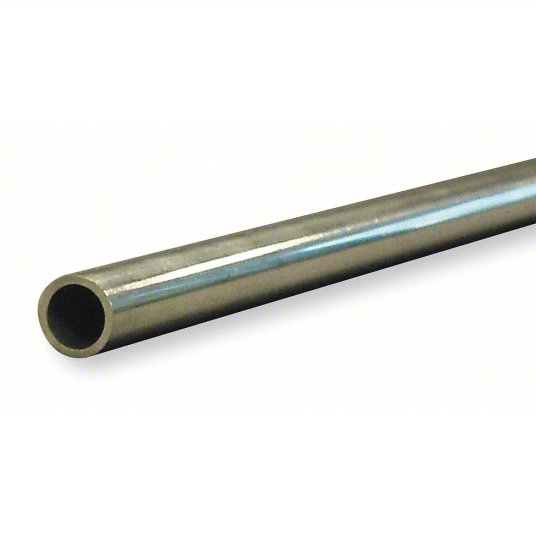

Tubing: Seamless, Nickel, 3/4 in Outside Dia, 0.62 in Inside Dia, 6 ft Overall Lg
This tubing is completely seamless and extruded entirely from nickel chromium. Seamless tubing is stronger than welded tubing, has more chemical and corrosion resistance, and can withstand higher pressures. Nickel chromium tubing is commonly used in chemical and food processing, steam generation, and electronic component applications.
Item 3ACR3
Mfr. Model 3ACR3
Material Grade 600
Material Nickel
Fabrication Seamless
Inside Diameter 0.62 in
Outside Diameter 3/4 in
Outside Diameter Tolerance +/-0.015 in
Wall Thickness 0.065 in
Maximum Operating Pressure 2,894 psi @72°F
Minimum Operating Temperature -325 °F
Maximum Operating Temperature 1,200 °F
Overall Length 6 ft
Weight Per Foot 0.513 lb/ft
StandardsASTM B163; ASTM B167
Form Straight
Features Non-Magnetic
For Environment Extreme High Temperature
Industry ApplicationChemical and Food Processing; Electronic Component; Steam Generator
Resistance Properties Corrosion Resistant
Temper Annealed
UNSPSC31231302
Country of Origin Varies
