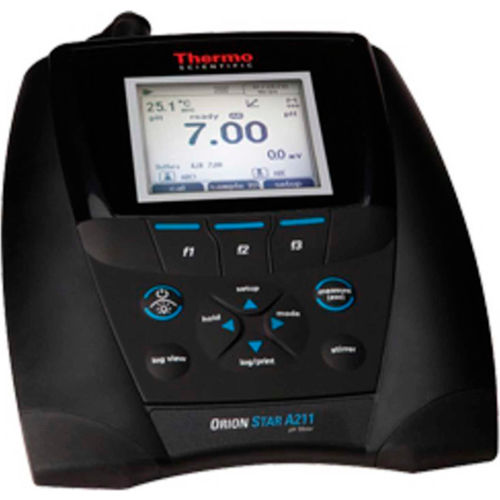

Thermo Scientific Orion Star™ A211 Benchtop pH Meter General Purpose Kit
Record accurate and reliable pH, mV, ORP and temperature measurements with the Thermo Scientific™ Orion Star™ A211 pH Benchtop Meter, ideal for a wide range of applications and advanced pH analysis in the lab. Perform up to a five point pH calibration, log up to 2000 data point sets with time / date stamp and easily transfer calibration and data logs via USB or RS232 to a printer or computer with free downloadable Orion Star™ Com software. Use the included electrode stand to easily place sensors in samples and simplify storage to minimize breakage.
Features:
- Measure pH, mV, relative mV or ORP with temperature
- Perform up to a five point pH calibration using automatic buffer recognition of NIST or DIN buffer groups with choice to manually enter custom buffer values
- Calibration editing option allows individual points to be fixed without a full recalibration
- Informative, easy-to-read backlit graphic display with clear onscreen instructions simplifies operation
- Capture your critical readings with measurement stability indicator and selectable read modes - Auto-Read holds a stable reading
- Continuous-read shows changing readings with hold option and Timed logs data at specific intervals
- Eliminate the need for magnetic stir bars using the meter-controlled stirrer probe (catalog number 096019) to uniformly mix solutions
- Data log collects and date/time stamps up to 2000 measurement sets with optional sample ID and user ID
- Calibration log stores ten most recent calibrations
- Non-volatile meter memory ensures your data and settings are protected, even with loss of power
- Orion Star Com software facilitates data transfer to a computer via USB or RS232 connections
- Flexible power options with universal power adapter or optional AA batteries
- IP54-rated housing resists dust and splashes and can be wall-mounted if table space is limited
- Meters include CE, TUV 3-in-1 and FCC Class A certifications and 3-year replacement warranty
Includes:
- Star A211 pH Benchtop Meter
- 9157BNMD Orion Triode refillable, epoxy-body pH/ATC electrode
- 910199 Orion pH buffer kit
- Electrode stand
- Universal power adapter
- Literature
- PC cable and test certificate
Weights & Dimensions
| Height | 4-1/4 in |
| Width | 7-1/8 in |
| Length | 9-1/2 in |
Product Details
| Inputs | BNC (pH or ORP Electrode), Reference Pin, 8 pin MiniDIN (ATC Probe) |
| Accuracy (mV) | ±0.2 mV or ±0.05% of Reading |
| Display | LCD |
| Operating Temperature | Ambient 41° to 113°F |
| Power Source | Universal AC Adapter (Included), 4 AA Batteries (Not Included) |
| Measurement Modes | pH, mV, Relative mV (RmV) or ORP with Temperature |
| Relative Millivolt Range | ±2000.0mV |
| Channels | 1 |
| IP Rating | IP-54 |
| Manufacturers Part Number | STARA2117 |
| Outputs | USB, RS-232 |
| Brand | Thermo Scientific |
| Range (pH) | -2 to 20 |
| Battery Type | 4 x AA (Sold Separately) |
| Type | pH Meter |
| Log Function | Manual, Automatic with AUTO-READ™ & Timed |
| Battery Life | 800 Hours |
| Millivolt Range | ±2000.0mV mV |
| Resolution | 0.1mV |
| Style | Benchtop |
| Data Points | 2000 with Date & Time Stamp |
| Voltage | 100-240 VAC V |
| Calibration Points | Up to 5 |
| Description | Benchtop pH Meter General Purpose Kit |
| Package Quantity | 1 |
| Accuracy (pH) | ±0.002pH |
| Resolution (pH) | 0.1, 0.01, 0.001 |
Model #: WBB2379074
MPN #: STARA2117
