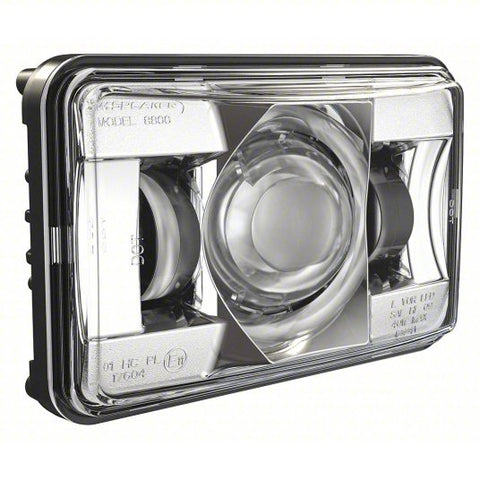

J.W. SPEAKER Headlight: Headlight, LED, Non-Heated, High Beam, Recessed Mount, H4 Connector
These standard headlights illuminate the road at night and in low-light conditions so that drivers see other vehicles, road hazards, and pedestrians. Headlights also ensure that vehicles are visible to other motorists on the road.
Item 52XE90
Mfr. Model 8800 Evolution 2
Manufacturer Part Number 8800 Evolution 2
Beam Type High Beam
Current1.00 A @ 24V DC; 2.10 A @ 12V DC
Electrical Connection H4 Connector
Features Drop-In Replacements for Typical Buckets/Panels used in Heavy-Duty Trucks
Heated Non-Heated
Housing Color Black
Housing Material Aluminum
IP RatingI P69K
Installation Type Permanent
Lamp Life 40,000 hr
Lens Color Clear
Light Type Headlight
Lighting Technology LED
Maximum Brightness 2,250 lm
Minimum Brightness 898 lm
Mount TypeLow-Profile Panel Mount
Operating Voltage 12-24V DC
Overall Depth 3-3/8 in
Overall Height 4-1/4 in
Overall Width 6-5/8 in
Peak Beam Intensity 73,200 cd
Series 8800 Evolution 2
Shape Rectangular
Standards DOT Compliant; ECE; NCAP
Maximum Operating Temperature149 °F
Minimum Operating Temperature-40 °F
Compatible Electrical Connection Manufacturer Model Number3269601; 3269611; 8000381
Includes Electrical ConnectionElectrical Connection Included
Mount Style Recessed
Series8800 Evolution 2
Vehicle Side Universal
Lens Material Polycarbonate
UNSPSC 25172901
Country of Origin USA (subject to change)
