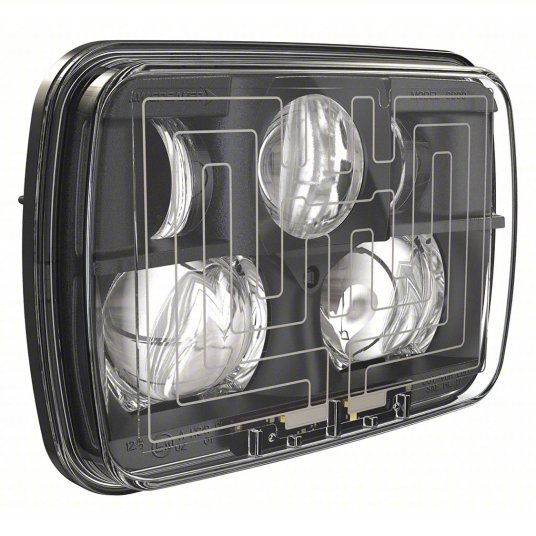

J.W. SPEAKER Headlight: Headlight, LED, Heated, High Beam/Low Beam, Recessed Mount, H4 Connector
Item # 468F60
Item 468F60 Mfr. Model 8910 Evo 2
Heated headlights melt snow and ice from the headlight's lens to improve visibility in wintry conditions. The heating element in the headlight is monitored by a thermostat that automatically activates when temperatures drop to a set low temperature, and then deactivates when temperatures rise to a set high temperature.
Manufacturer Part Number8910 Evo 2
Beam Type High Beam; Low Beam
Current1.32 A @ 24V DC; 2.10 A @ 24V DC; 2.50 A @ 24V DC; 2.80 A @ 12V DC; 4.30 A @ 12V DC; 5.35 A @ 12V DC
Electrical ConnectionH4 Connector
FeaturesDrop-In Replacements for Typical Buckets/Panels used in Heavy-Duty Trucks
Heated Heated
Housing Color Black
Housing Material Aluminum
IP RatingI P69K
Lamp Life 40,000 hr
Lens Color Clear
Light Type Headlight
Lighting Technology LED
Maximum Brightness 1,200 lm
Minimum Brightness 975 lm
Mount Type Low-Profile Panel Mount
Operating Voltage 12-24V DC
Overall Depth 3-3/4 in
Overall Height 5-9/16 in
Overall Width 7-7/8 in
Series 8910 Evolution 2
ShapeRectangular
Standards DOT Compliant; ECE; NCAP
Maximum Operating Temperature 149 °F
Minimum Operating Temperature -40 °F
Compatible Electrical Connection Manufacturer Model Number 8000381
Includes Electrical Connection Electrical Connection Included
Mount Style Recessed
Series8910 Evolution 2
Vehicle Side Universal
Lens Material Polycarbonate
UNSPSC25172907
Country of Origin USA (subject to change)
