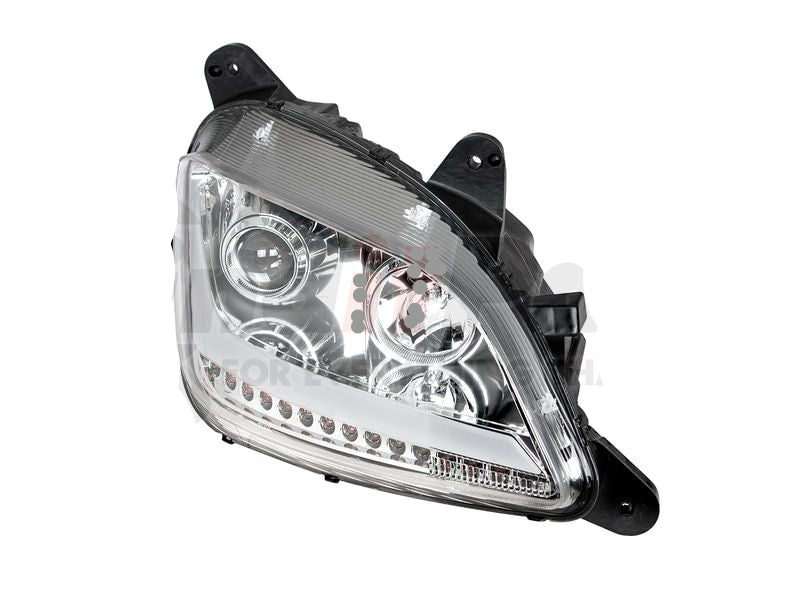

UNITED PACIFIC 35813 Headlight Assembly - Passenger Side (RH), Projection, LED, with Position and Turn Signal Light
Product Description
Chrme Prjctn HeadLght, LED Pos Lght & Signal For 2012-2021 PTRBLT 579- Passenger
Application Summary
2010-2016 Peterbilt 587
2021-2020 Peterbilt 579
Features & Benefits
LED projector-type headlight with LED position light and LED turn signal
With high beam and low beam functionality
Patent-pending headlight lens design with reflective turn signal diffusers
Meets all necessary DOT, SAE, and FMVSS 108 requirements
Easily plugs into existing factory wiring harness
Comes with pre-installed removable load resistors
Designed for 2012 to 2021 Peterbilt 579 and 2010 to 2016 Peterbilt 587
United Pacific Chrome Projection Headlight with LED Position Light & Signal
With its unique patented design, this United Pacific chrome projection headlight is as eye catching as it is functional. This trusty headlight gives off clear and bright light on the road for improved visibility at night or under low-light driving conditions.
UNITED PACIFIC 35813 Specifications
Product Attributes
Voltage 12V
Beam Type High/Low
Bulbs Included Yes
Lens Color Clear
Bulb Type H9 Quartz (Low Beam), H1 Quartz (High Beam)
Lens Material Plastic
Headlight Type Assembly
Bulb Quantity 2
Housing Color Chrome
Amperage Rating 5.25 Amps (Low Beam), 4.58 Amps (High Beam)
High Beam Wattage 55 Watts
Bulb Technology Halogen
Wattage 65 Watts (Low Beam), 55 Watts (High Beam)
Certification DOT/SAE/FMVSS 108
Location Passenger Side
