Abell-Howe® Under-Braced Wall Mounted Jib Crane 960010 1000 Lb. Capacity with 12' Span
Model #: WB746584
MPN #: 960010

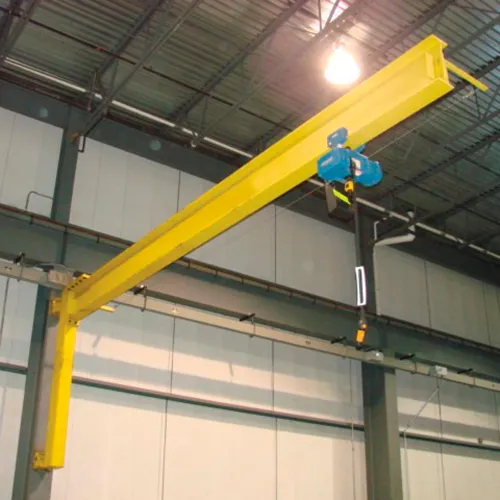

Abell-Howe® UNDER-BRACED WALL MOUNTED JIB CRANE
180 Degree Rotation Hinge mounts easily to any substantial structural steel building column at desired height. Crane fittings have bearing with lube fitting. Structural steel finish in highly visible yellow enamel
Weights & Dimensions
| Length | 12 ft |
| Weight Capacity | 1000 lbs |
| Weight | 370 lbs |
| Span | 12' |
| Flange Width | 5-1/4 in |
| I-Beam Height | 8 in |
Product Details
| Assembly Required | No |
| Type | Wall Cantilever Jib Crane |
| Hinge Spacing | 4' ft |
| Thrust & Pull | 3730 lbs |
| Color | Yellow |
| Series | J906 |
| Style | Under Braced |
| Material | Steel |
| Description | Wall Mount Jib Crane |
| Manufacturers Part Number | 960010 |
| Brand | Abell-Howe |
Warranty
| Warranty | 1 yr |
