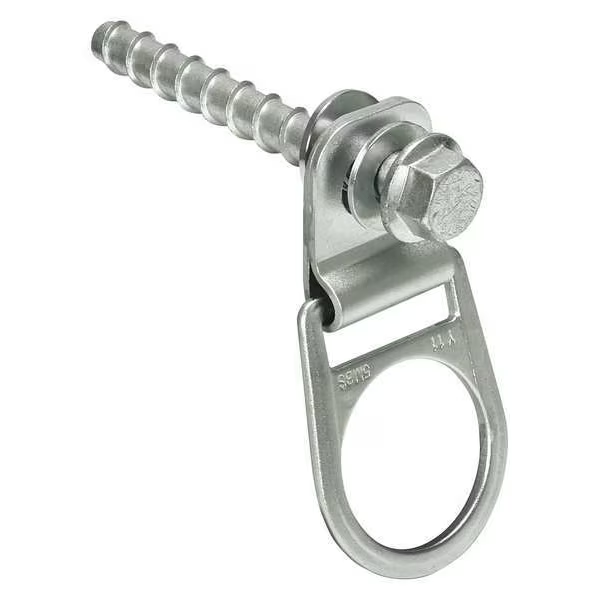

Concrete Anchor, 6 in Length, 310 lb Weigth Capacity, Stainless Steel Anchor, 1 Workers per System
Product Information
MFR #
7451A
G9974727
-
Country of Origin
Taiwan, Province of China
Dimensions
Length
6 in
Hole Dia.
5/8 in
Width
3 in
Hole Depth
5 3/8 in
Overall Length
6 in
For Wall Thickness
7 in
For Hole Dia.
5/8 in
Ring Inside Dia.
3 in
Bolt Length
5 1/2 in
Ring Diameter
3 in
Maximum Hole Depth
5 3/8 in
Ring Inside Diameter
3 in
For Hole Diameter
5/8 in
Mounting Hole Diameter
5 3/8 in
Details
Item
Concrete Anchor
Standards
ANSI Z359.1-2007, OSHA 1926.502
Weight Capacity
310 lb
Tensile Strength
5,000 lb
Anchor Material
Stainless Steel
Attachment Point
Swivel D-Ring
Workers per System
1
Material
Stainless Steel
Installation
Temporary
Includes
5-1/2 in Concrete Screw
Concrete Strength
4,000 psi
Number of Mounting Holes
1
Includes Mounting Hardware
Yes
Anchor Installation
Reusable
Brand and Series
FallTech
OSHA Standards Met
OSHA 1910.66, OSHA 1926.502
Detent Anchor Components
D-Ring Pin
ANSI Standards Met
ANSI Z359.1-2007
Number of Bolts Included
1
Standards
ANSI Z359.1-2007, OSHA 1926.502
Length
6 in
Weight Capacity
310 lb
Tensile Strength
5,000 lb
Anchor Material
Stainless Steel
