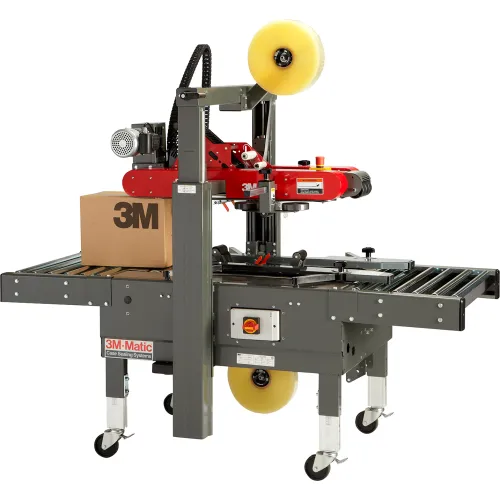

3M-Matic™ 7000a Pro Adjustable Case Sealer, Top & Bottom Drive, 2" AccuGlide™ 3 Tape Head
User Documentation
accessories shown sold separately
Model #: WB422859
MPN #: 7100023746
The 3M-Matic™ adjustable case sealer 7000a Pro with 2" 3M™ AccuGlide™ 3 taping head seals your boxes swiftly and reliably, shift after shift, year after year. With expanded box size capacity and interchangeable taping heads, this rugged sealer allows you to change as your business changes, boosting your productivity, cutting your costs and keeping your business profitable. Seals case lengths of 6" and up, widths of 6.5" - 26", heights 4.75" - 36". It seals 40 cases/min, depending on box length. Includes both upper and lower tape heads.
Features:
- Easy to use features for height and width adjustments along with measurement scales for quick changeover
- Consistent durable case taper that manually adjusts to handle multiple box sizes
- Rugged construction with 16 ga welded steel frame and powder coat paint finish
- Top and bottom belt drive for positive box conveying
Optional accessories are sold separately that include casters
Weights & Dimensions
| Max Box Length | Unlimited |
| Machine Length | 40-1/2 in |
| Machine Height | 101 in |
| Cord Length | 8 ft |
| Max Box Height | 36 in |
| Max Box Width | 24-1/2 in |
| Min Box Length | 6 in |
| Tape Width | 2 in |
| Machine Width | 37-3/4 in |
| Min Box Width | 6-1/2 in |
| Min Box Height | 4-3/4 in |
Product Details
| Box Belt Speed | 100 ft. Per Minute |
| Type | Top & Bottom Belt Drive |
| Operating Speed | 40 Boxes/Minute |
| Color | Gray |
| Amperage | 3.8 A |
| Series | 7000a |
| Hertz | 60 Hz |
| Wattage | 440 W |
| Voltage | 115 V |
| Description | 3M-Matic™ Adjustable Case Sealer |
| Package Quantity | 1 |
| Manufacturers Part Number | 7100023746 |
| Brand | 3M-Matic |
