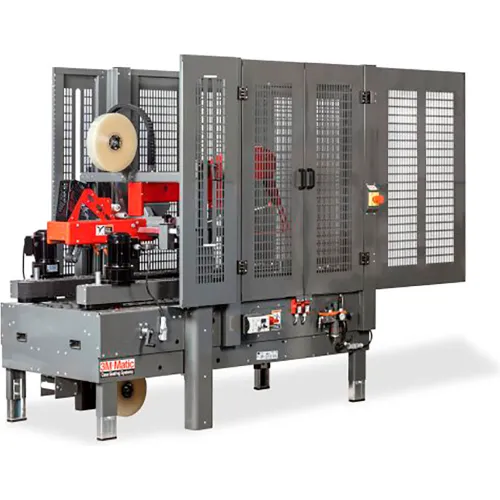

3M-Matic™ 8000af Adj. Flap Folding Case Sealer w/ AccuGlide 3 Taping Head, 2 - 3" Tape Width
accessories shown sold separately
Model #: WBB3131916
MPN #: 7100153243
3M-Matic™ Case Sealer 8000af3 With 3M™ AccuGlide™ 3 Taping Head is a manually adjustable case sealer that folds the top flaps for sealing without the need for an operator. The twin gear motor drives power traction-grip drive belts on each side to center and stabilize cases up to 85 lbs. (38kg). This case sealer uses 3" (72mm) Scotch® box sealing tapes and seals up to 40 cases per minute.
Features:
- Automatically folds flaps for precise sealing
- Quickly and easily adjusts to a wide range of case heights and widths
- Energy Savings Option automatically shuts sealer off if no box is present
- Traction-grip drive belts on each side center and stabilize a variety of case sizes
- 3M™AccuGlide™ 3 Taping Heads allow for low impact sealing that protects cases
- Designed to seal up to 40 uniform cases per minute
- Centrally located emergency stop on each side for easy access
- Height controls are located outside guarding for convenient adjustment
Optional accessories are sold separately that include casters
Weights & Dimensions
| Weight | 840 lbs |
| Machine Length | 75-5/8 in |
| Max Box Length | 30 in |
| Machine Height | 62 in |
| Cord Length | 8 ft |
| Tape Width | 1-1/2 - 2 in |
| Machine Width | 45-13/16 in |
| Min Box Width | 4-3/4 in |
| Min Box Height | 4-1/4 in |
| Max Box Height | 24-1/2 in |
| Max Box Width | 21-1/2 in |
| Min Box Length | 6 in |
| Max Box Weight | 85 lbs |
| Conveyor Height Adjustment | 24 - 35 |
Product Details
| Assembly Required | Yes |
| Box Belt Speed | 100 ft. Per Minute |
| Operating Speed | 40 Boxes/Minute |
| Wattage | 440 W |
| Manufacturers Part Number | 7100153243 |
| Brand | 3M-Matic |
| Type | Side Belt Drive |
| Color | Gray |
| Amperage | 6.4 A |
| Series | 8000af |
| Hertz | 60 Hz |
| Voltage | 115 V |
| Package Quantity | 1 |
