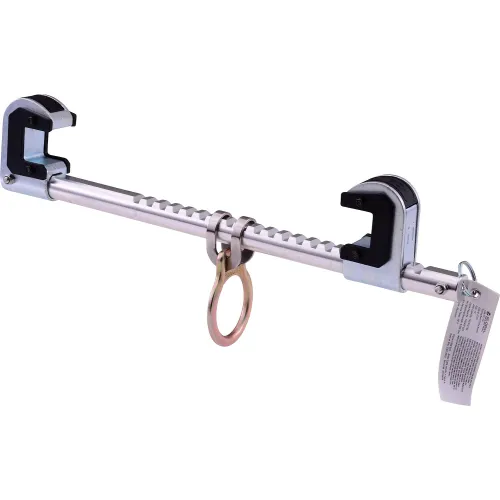

14-1/2" Trailing Beam Clamp Anchor
Model #: WB761306
Fits beam flanges 3" to 14-1/2" wide
Sturdy aluminum crossbar with steel clamping jaws
Easily attaches to horizontal I-beams and structural beams
Get the best in fall arrest protection with the Global Industrial™ 14-1/2" Trailing Beam Clamp Anchor. It features an aluminum crossbar with steel clamping jaws and nylon slider pads to easily attach to horizontal I-beams and structural beams, creating a moveable anchor point. Fits beam flanges from 3" to 14-1/2" W and up to 1-1/4" W. Its single adjusting jaw includes concealed locking latch and then alloy steel D-ring slides with the jaw adjustment. ANSI Z359.11-2021, CSA Z259.10-2018, OSHA 1926.502, OSHA 1910.140 compliant. 1-Year Limited Warranty.
We've partnered with FallTech® to bring you the best in safety protection for you and your business.
Sturdy aluminum crossbar with steel clamping jaws
Easily attaches to horizontal I-beams and structural beams
Get the best in fall arrest protection with the Global Industrial™ 14-1/2" Trailing Beam Clamp Anchor. It features an aluminum crossbar with steel clamping jaws and nylon slider pads to easily attach to horizontal I-beams and structural beams, creating a moveable anchor point. Fits beam flanges from 3" to 14-1/2" W and up to 1-1/4" W. Its single adjusting jaw includes concealed locking latch and then alloy steel D-ring slides with the jaw adjustment. ANSI Z359.11-2021, CSA Z259.10-2018, OSHA 1926.502, OSHA 1910.140 compliant. 1-Year Limited Warranty.
We've partnered with FallTech® to bring you the best in safety protection for you and your business.
Weights & Dimensions
| Weight Capacity | 130-425 lbs |
| Max Flange Thickness | 1-1/4 in |
| Flange Width | 3 - 14-1/2 in |
| Tensile Strength | 5,000 lbf/min. |
Product Details
| Type | Beam Clamp Anchor |
| Anchor Material | Aluminum Alloy & Plated Alloy Steel |
| Install Type | Reusable |
| Description | Clamp Anchor |
| Color | Silver |
| Attachment Type | Swivel D-ring |
Compliance & Certifications
| Certifications | ANSI Z359.18-2017, OSHA 1926.502, OSHA 1910.140 |
