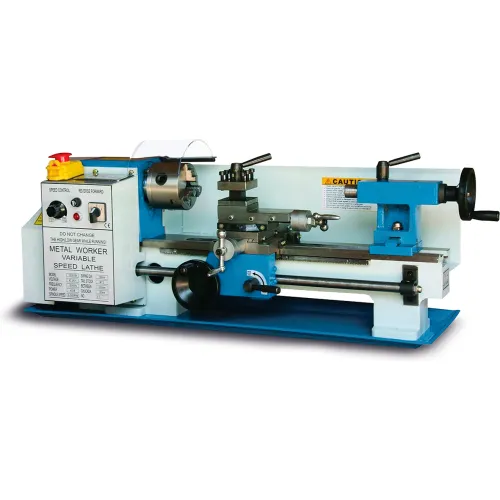

Baileigh Industrial® PL-714VS-V2 Bench Top Lathe with Mitutoyo® DRO, 3/4 HP, 1PH, 110V

  • Sale
  • $2,767.00


Baileigh Industrial® PL-714VS-V2 Bench Top Lathe with Mitutoyo® DRO, 3/4 HP, 1PH, 110V

Model #: WBB3169434

MPN #: BA9-1228214

With a base constructed from 100% cast iron, this precision engine lathe for sale holds exacting tolerances under the most demanding work conditions. It includes a factory-installed Mitutoyo® DRO.

This 14" bed variable-speed benchtop metal lathe is accurate to .001"-a level of quality typically associated with larger models. The PL-714VS is a compact and economical choice for home garage shops.

Features:

  • Variable speed from 100 to 2,500 rpm
  • Digital readout (DRO) shows spindle speed
  • Runs on 110 volts, so it will work anywhere
  • Capable of making metric or standard threads
  • Includes 3-jaw and 4-jaw chucks to hold rounded and square materials
  • Standard style tool post
  • Steady rest and follow rest prevent wobbling and maintain high accuracy
  • Splash guard helps keep your shop safe from flying debris
  • Catch pan avoids mess when you spray coolant
  • Baileigh® lathe comes with 1-year parts warranty
  • Replacement parts in stock for fast shipping
  • Covered by lifetime technical support by phone from our team of knowledgeable reps

Weights & Dimensions

Length 48
Width 31 in
Height 20 in
Weight 170 lbs
Distance Between Centers 13-13/16 in
Spindle Bore 3/4 in
Swing Over Bed 7 in
Cross Slide Travel 2-9/16 in

Product Details

Style Type Variable Speed Lathe
Style Variable Speed
Motor Voltage 110 V
DRO Mitutoyo
Phase 1
Manufacturers Part Number BA9-1228214
Motor Horsepower 3/4 HP
Collet Closer No
Taper Attachment No
Range of Threads per Inch 12 - 52 in
Brand Baileigh Industrial
