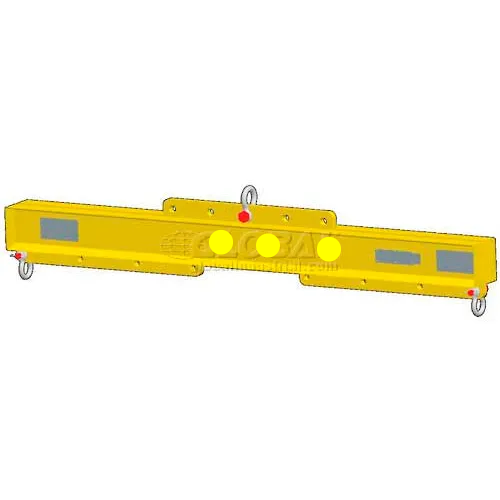

M&W 12-48" Economy Lift Beam Adjustable Length - 4000 Lb. Capacity
Model #: WBB563870
MPN #: 13924
- For use in construction & industrial applications with overhead, gantry, or jib cranes to attach to a wide range of loads
- Acts as a crosspiece for spacing the hooks or chains that hold loads such as bars, racks, rolls, cylinders, and machinery
- Provides quick and easy multi-point adjustment of unbalanced loads and is ideally suited to low headroom applications
- Shackle bottoms standard for rigging connections
- Swivel hooks, eye hooks, and custom connections available
- Manufactured to exceed all ASME B30.20 and OSHA regulations
- Individually proof loaded per OSHA requirements and shipped with certification paperwork
- RFID tracking chip equipped.
- The upper bail is 32 inches which is adjustable in increments of 4.
Weights & Dimensions
| Weight Capacity | 4000 lbs |
| Weight | 65 lbs |
| Spread | 12 to 48 in |
| Head Room | 9-1/2 in |
| Upper Bail Adjustment | 16 in |
Product Details
| Assembly Required | No |
| Material | Steel |
| Color | Yellow |
| Manufacturers Part Number | 13924 |
| Brand | M&W |
