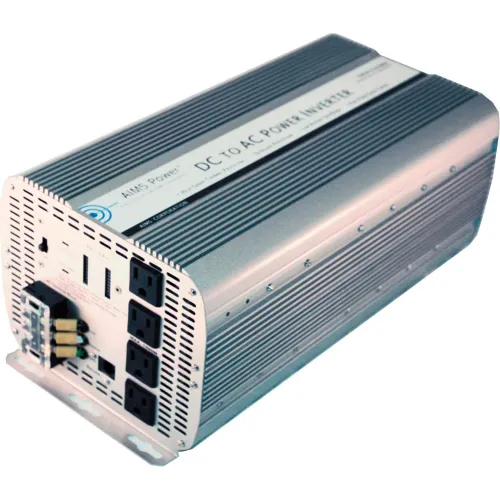

AIMS Power 5000 Watt 48 Volt inverter, PWRINV500048W
Model #: WBB1789564
MPN #: PWRINV500048W
Modeled off the top-selling AIMS 5000 Watt Modified Sine Power Inverter, this 48 volt DC inverter shares a lot of the same features for our customers with 48Vdc battery banks. A voltmeter and amp gauge on the front of the unit will read out valuable information on battery charge and load consumption. The inverter also features a direct connect terminal block for devices that require over 1500 watts. The terminal block will allow you to hardwire to utilize the full 5000 watt capacity of the inverter.
Features:
- 5000 Watt max continuous power
- 48 Volt Power Inverter
- Modified sine wave
- Volt meter on front panel to monitor your battery voltage
- Amp meter on front panel to monitor your current use (rate at which battery is drained)
- AC Direct Connect Terminal
- Over Temperature LED indicator
- Over Load LED indicator
- Quadruple ac receptacle that can be used with any separate splitter to provide even more outlets
- On/off switch
- Over Temperature protection
- Over Load protection Single cooling fan operation thermally controlled Internally fuse protected ac output short circuit protection
- Auto reset on most fault conditions
- Aluminum case for optimal cooling
- Pre-wired for remote on/off switch
- Pre-slotted mounting plate
- Instruction manual
- Free 1 year tech support
- 1 Year Warranty Parts and Labor
Specifications:
- Continuous output power: 5000 Watts
- Surge power capability (peak power): 10,000 Watts
- dc input / operating voltage: 39 to 64 Volts
- Output voltage: 120 Volts ac +/- 10%
- Output wave form: modified sine wave with phase correction
- Output frequency: 60 Hz +/- 1 Hz
- Battery low voltage alarm: 40 +/- 0.5 Volts
- Battery low voltage shutdown: 38 +/- 0.5 Volts
- No load current: < 0.2 Amps
- Full load efficiency: 90%
- 1/3 load efficiency: 95%
- No load minimum operating temperature: -15 degrees Celsius
- Full load maximum operating temperature: 55 +/- 5 degrees Celsius (automatic shutdown)
- AC Output Socket Type: quadruple Type 2 -3 prong
- High input voltage protection: 64 volts
- Low input voltage shutdown: 38 volts
- Internal fuse protection
- Product size (L x W x H): 17"X 7.75"X 6"
- Weight: unit 18 lbs boxed 20 lbs
- UL maximum recommended per outlet 1500W
Weights & Dimensions
| Length | 17 in |
| Width | 7-3/4 in |
| Height | 6 in |
| Weight | 18 lbs |
Product Details
| No Load Current | <0.2 Amps A |
| Continuous Output Power | 5000 W |
| Manufacturers Part Number | PWRINV500048W |
| Output Voltage | 120 VAC V |
| Outlet Socket Type | 4 Outlets, UL rated 1500W Max Each. Includes Term. Block Option for Full 5000W |
| DC Input Voltage | 48 VDC |
| Internal Fuse Protection | Yes |
| Brand | AIMS Power |
