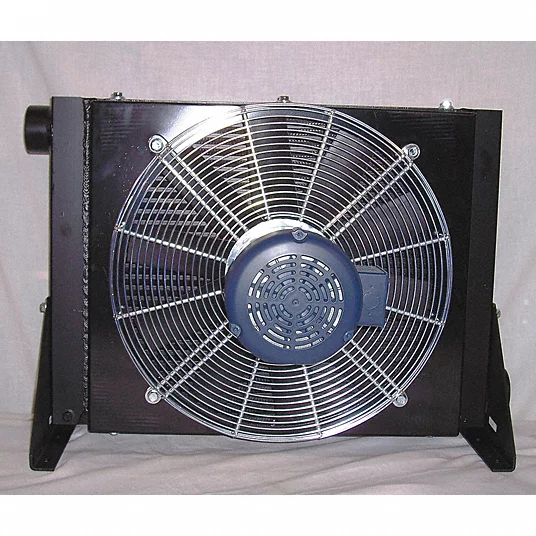

Air Cooled Aftercooler: 100 hp Max Compressor Output Power, 785 cfm, 115/230V AC, 1-Phase
Fan-powered aftercoolers install immediately downstream from the air compressor. Fan-powered aftercoolers cool the air with a motor-driven fan that blows air on the coils.
Brand
AKG
AKG
Air Inlet Type
NPT
NPT
Air Inlet Size
2 in
2 in
Air Outlet Connection Type
NPT
NPT
Air Outlet Size
2 in
2 in
Construction
Aluminum
Aluminum
Cooling Method
Air
Air
Current Rating
6.4 A
6.4 A
Features
Reduced Air Slide Fouling
Reduced Air Slide Fouling
Fin Material
Aluminum
Aluminum
For Use With
Rotary Air Compressor
Rotary Air Compressor
Frequency
60 Hz
60 Hz
Includes
Mounting Legs
Mounting Legs
Junction Box Design
Single Point Electrical
Single Point Electrical
Maximum Air Flow
785 cfm
785 cfm
Maximum Compressor Output Power
100 hp
100 hp
Maximum Fan Horsepower
1 hp
1 hp
Maximum Operating Pressure
250 psi
250 psi
Maximum Operating Temperature
350 °F
350 °F
Minimum Operating Pressure
60 psi
60 psi
Overall Depth
18-11/16 in
18-11/16 in
Overall Height
23-3/16 in
23-3/16 in
Overall Width
30-1/4 in
30-1/4 in
Phase
Single
Single
Shell Material
Steel
Steel
Standards
CSA Certified; UL Listed
CSA Certified; UL Listed
Tube Material
Aluminum
Aluminum
Voltage
115/230V AC
115/230V AC
Manufacturer Part Number
CC600-1
CC600-1
UNSPSC
40101702
40101702
Country of Origin
USA
USA
Item 4UJE7
Mfr. Model CC600-1
