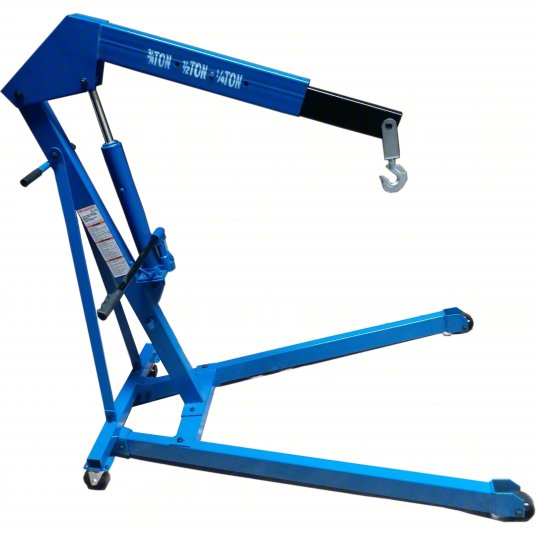

WESTWARD Engine Crane: Engine Crane, Steel, 0.25 ton_0.5 ton_0.75 ton Load Capacity, Blue
Item 5Z010
Mfr. Model 5Z010
Engine cranes (or hoists) help remove or install engines in small or crowded vehicle engine compartments. These lifting devices have beamed supports to hold the engine up over a vehicle so that maintenance can be performed on parts, hoses, electrical wiring, or timing chains. Cranes are used with engine stand supports to safely rotate engines for repairs anywhere on the vehicle.
Brand WESTWARD
Product Type Engine Crane
Frame Material Steel
Load Capacity 0.25 ton; 0.5 ton; 0.75 ton
Number of Boom Positions 3
Boom Capacity (Retracted) 0.75 ton
Color Blue
Overall Length 54 in
Overall Height 55-1/2 in
Overall Width 36 in
Boom Capacity (Second Position) 0.5 ton
Boom Capacity (Third Position) 0.25 ton
Display Qty 1
Display Sell UOM EA
Extended Boom Length 47-1/8 in
Features Equipped with Built-In Pressure Overload By-Pass and Metered Release Valve Enabling The Operator to Lower The Boom At A Controlled Rate of Speed
Lifting Actuator Mechanical
Manufacturer Part Number 5Z010
UNSPSC 24101630
Country of Origin Varies
