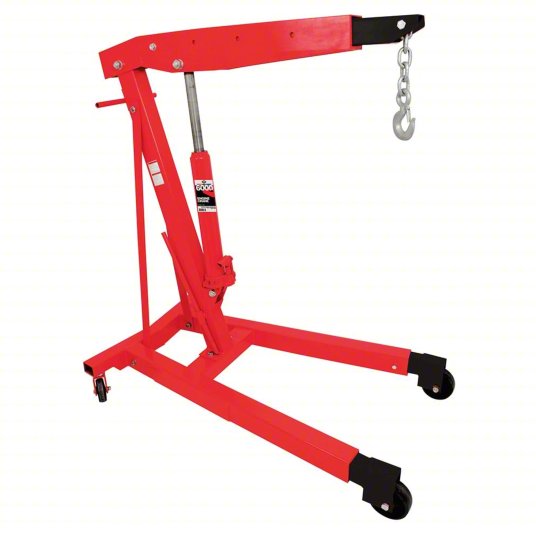

American Forge & Foundry Engine Crane, 6,000 Capacity Lbs.
Model #: WBB2428219
Item 806J81
Mfr. Model 3584
Heavy Duty engine crane with reinforced leg assemblies for added strength and durability. 4 different boom settings: 3 T, 2 T, 1.5T, 1T. 12 Ton hydraulic ram has built in safety overload to protect the unit from being used beyond its rated capacity. Large 4.25" rear swivel casters and 6" fixed front wheels provide ease of mobility and positioning. Rear of crane stands 61.5" tall and 33" wide. Distance between front of legs, retracted - 23", extended - 28.5". Shipping Weight: 359 lbs. Capacity: 6,000 Lbs. 1 Year Limited Warranty.
Engine cranes (or hoists) help remove or install engines in small or crowded vehicle engine compartments. These lifting devices have beamed supports to hold the engine up over a vehicle so that maintenance can be performed on parts, hoses, electrical wiring, or timing chains. Cranes are used with engine stand supports to safely rotate engines for repairs anywhere on the vehicle.
Product Details
| Type | Engine Crane |
| Capacity | 3 Ton |
| Description | 3 Ton Engine Crane |
| Manufacturers Part Number | 3584 |
| Brand | American Forge & Foundry |
Warranty
| Warranty | 1 yr |
Compliance & Certifications
| Certifications | 2014 ASME/PASE Safety Standards |
Display Qty 1
Display Sell UOM EA
Distance Between Legs (Extended) [New] 28-1/2 in
Distance Between Legs (Retracted) 23 in
Extended Boom Length 70 in
Features Constructed with Built in Safety Overload to Protect the Unit from Being Used being its Rated Capacity; Reinforced Leg Assemblies
Frame Material Finish Plain
Lifting Actuator Hydraulic Pump
Manufacturer Part Number 3584
Rear Base Width 32-4/5 in
Retracted Boom Length 56 in
Wheel Diameter4-1/2 in; 6 in
Country of Origin China (subject to change)
