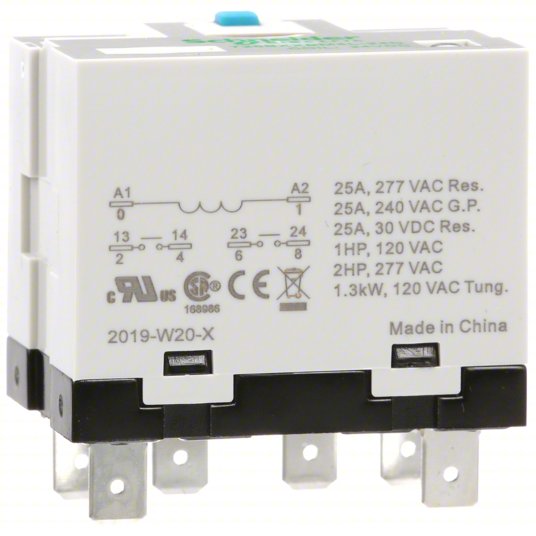

SCHNEIDER Enclosed Power Relay: Socket Mounted, 25 A Current Rating, 24V DC, DPST-NO, M Socket

Sale
$66.00

SCHNEIDER Enclosed Power Relay: Socket Mounted, 25 A Current Rating, 24V DC, DPST-NO, M Socket-

Datasheet:

These relays have pins that plug into relay sockets to make quick electrical connections with circuits. Also known as ice cube relays, they don't require tools for removal or installation and are ideal for applications where relays are changed periodically.

Item 6CVH8

Mfr. Model 725BXXBM4L-24D

Brand
SCHNEIDER

Manufacturer Part Number
725BXXBM4L-24D

Series
Harmony™ 725 Power Series

Relay Mounting Style
Socket

Electrical Connection Type
Tab

Number of Pins/Terminals
6

Socket Code
M

Current Rating
25 A

Coil Voltage
24V DC

Contact Form
DPST-NO

Contact Rating (AC)
25 A @ 240/277V

Contact Rating (DC)
25 A @ 28/30V

Motor Rated
Yes_

Horsepower @ 120V AC
1 hp

Horsepower @ 240V AC
2 hp

Status Indicator

LED Indicator
Mechanical Flag

Push-To-Test Button
Lockable Push Test Button

Electrical Operating Durability
100,000

Mechanical Operating Durability
5,000,000

Dielectric Strength2,000V AC Between Poles; 4,000V AC Between Coil and Contact

Coil Voltage (Nominal@60Hz)
24V DC

UNSPSC
39121515

Country of Origin
China
