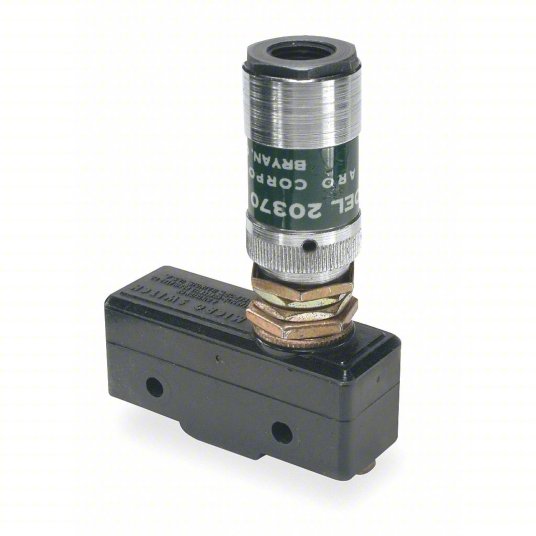

ARO Electro-Pneumatic Actuator: SPDT, 125V AC/250V AC/480V AC, 0°F to 180°F, 125 psi Max Op Pressure
Switch Type
SPDT
SPDT
Input Voltage
125V AC; 250V AC; 480V AC
125V AC; 250V AC; 480V AC
Contact Rating
0.5 A
0.5 A
Overall Length
1-15/16 in
1-15/16 in
Overall Width
11/16 in
11/16 in
Overall Height
2-5/8 in
2-5/8 in
Standards
NEMA 4
NEMA 4
Manufacturer Part Number
114810
114810
Compatible with Series
Alpha; Maxair
Alpha; Maxair
Maximum Operating Pressure
125 psi
125 psi
Maximum Operating Temperature
180 °F
180 °F
Minimum Operating Temperature
0 °F
0 °F
Temperature Range
0 °F to 180 °F
0 °F to 180 °F
UNSPSC
31251504
31251504
Country of Origin
USA
USA
These electro-pneumatic actuators respond to electrical signals from a control system to open and close airflow valves, powering mechanical movements.
Item 4KB38
Mfr. Model 114810
