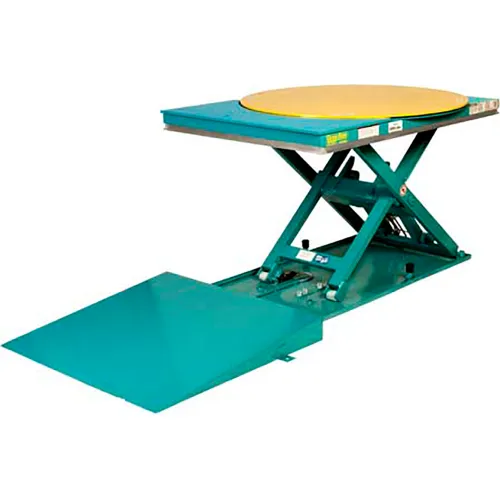

Ballymore Guardian Lift-N-Spin Scissor Lift Table, Hand Operated, 2000 lb. Cap., 55"L x 40"W, 115V

Model #: WBB3168011

MPN #: BM-GLS-2K-35R-4055-H

With a lowered height of only 4.25", The Lift-N-Spin can be loaded with a manual or electric pallet truck. This is accomplished by the exclusive auto-transition plate which provides a smooth surface from the ramp onto the rotating top. Once the lift is raised 1/4" the plate automatically lowers to allow the spinning of the rotating top. When the table is fully lowered, the plate automatically raises again to provide a smooth surface to load the next pallet.

The Lift-N-Spin has a raised height of 35" providing an ideal height for work positioning applications. The rotating top avoids the need to walk around or reach across.

The Remote Power Unit features a 1 HP motor. This is a highly efficient and quiet pump motor combination. A three-button control box has 115-volt single phase and runs on a 20 amp circuit. 230/460 3 phase is optional.

Features:

• Meets and exceeds both U.S. (ANSI) and European safety standards
• Upper platform safety perimeter bar prevents descent on contact
• Electric circuit reset button in case the safety perimeter is actuated
• Low-tension (24V) control box with up-down buttons
• External power pack equipped with a relief valve against overloading
• Remote Power Unit supplied with 8' long hoses
• Compensated flow valve for controlling lowering speed
• Mechanical blocks for safe maintenance operations
• Upper limit switch
• Single acting cylinders with drainage system and check valve
• Safety clearance between scissors to prevent trapping during operation
• Self-lubricating bushings on pivot points
• Removable lifting eye(s) to facilitate handling and installation
