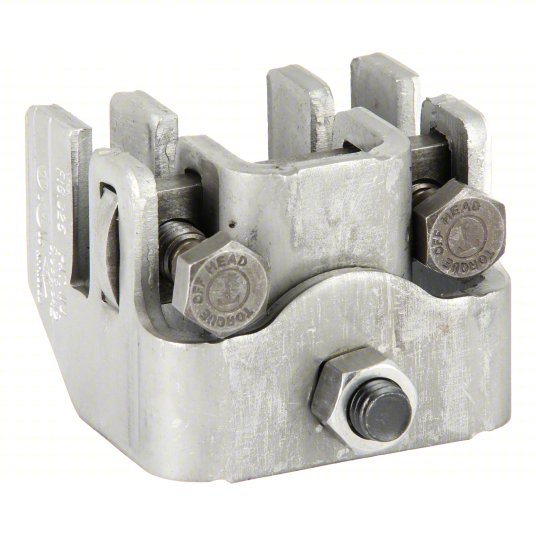

Bar Joist Sway Brace Attachment: Steel, 2 1/2 in Ht, 2 1/2 in Lg, 1 3/4 in Wd
Item 21RV96
Mfr. Model 825
Structural seismic braces bolt onto building structures to serve as an attachment point to anchor seismic bracing to structural components such as beams, trusses, and joists during an earthquake.
Brand TOLCO
Manufacturer Part Number 825
Sway Brace Type Bar Joist
Application Sway Bracing and Hanger Assemblies
Material Steel
Finish Plain
Overall Height 2-1/2 in
Overall Length 2-1/2 in
Overall Width 1-3/4 in
Flange Thickness 0.375 in
Weight Capacity 2,015 lb
Includes Mounting Hardware Mounting Hardware Included
Standards cUL Listed; cULus Listed; FM; OSHPD; TOLCO; UL Listed
UNSPSC 39121701
Country of Origin USA
