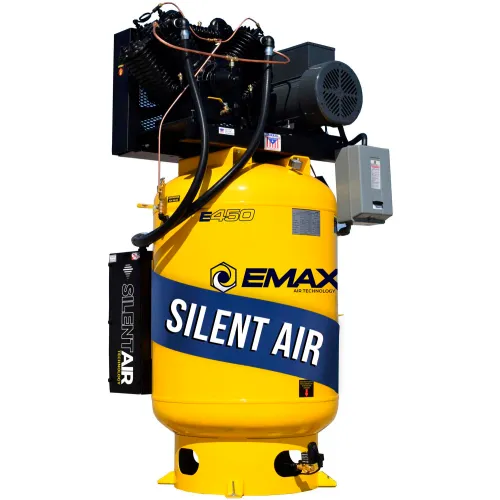

EMAX ESP10V120V1 Silent Air Compressor, 10 HP, 120 Gal, Vertical, 175 PSI, 38 CFM, 208/230
Model #: WB717622
MPN #: ESP10V120V1
Emax® Whisper Silent Air Industrial Plus Compressor, 10 HP, 120 Gal, Vertical, 175 PSI, 38 CFM, 208/230
Engineered and manufactured in the U.S.A. The whisper series compressors reduce stationary compressor DBA ratings by as much as 25%! A noise suppression device was first conceived by EMAX engineers after feedback from competitor compressor users revealed a large number of complaints regarding the extreme noise level of their compressors in a work environment. It can be installed and operated in all Garage, Farm Shop, and Industrial applications which eliminate the need for traditionally expensive and often inadequate separate buildings or structures to house the air compressor. The Whisper silent air systems are already installed on the back of the tank with brackets that are fabricated for easy removal and low profile.The Whisper dissipates compressor intake noise by channeling the intake air through a series of baffle plates and pre-filter media within the silencer cabinet. As a result, the piston intake noise is trapped and dissipated within the silencer structure. It also acts as a secondary filtration for cleaner air.
Features
Engineered and manufactured in the U.S.A. The whisper series compressors reduce stationary compressor DBA ratings by as much as 25%! A noise suppression device was first conceived by EMAX engineers after feedback from competitor compressor users revealed a large number of complaints regarding the extreme noise level of their compressors in a work environment. It can be installed and operated in all Garage, Farm Shop, and Industrial applications which eliminate the need for traditionally expensive and often inadequate separate buildings or structures to house the air compressor. The Whisper silent air systems are already installed on the back of the tank with brackets that are fabricated for easy removal and low profile.The Whisper dissipates compressor intake noise by channeling the intake air through a series of baffle plates and pre-filter media within the silencer cabinet. As a result, the piston intake noise is trapped and dissipated within the silencer structure. It also acts as a secondary filtration for cleaner air.
Features
- Continuous run feature for longer projects
- Belt Tensioner is an easy one turn maintenance on belts
- Air Stream Technology allows air to flow under the pump
- Magnetic Starter
Weights & Dimensions
| Length | 41 in |
| Width | 43 in |
| Height | 78 in |
| Weight | 1020 lbs |
| Tank Size | 120 gal |
| Tank Outlet | 3/4" |
Product Details
| Oil Type | Full Synthetic |
| Air Dryer | No |
| Oil System | Splash Lube |
| Pump Material | Solid Cast Iron |
| Tank Drain Valve | Automatic |
| Max PSI | 175 psi |
| Start Type | Magnetic Starter |
| Phase | 1 |
| Tank Orientation | Vertical |
| Oil Sight Glass | Yes |
| Manufacturers Part Number | ESP10V120V1 |
| Pump RPM | 800 |
| Pump Type | Two Stage |
| Low Oil Shutoff | No |
| Brand | EMAX |
| CFM | 38 CFM |
| Horsepower | 10 HP |
| Color | Yellow |
| After Cooler | No |
| Style | Vertical |
| Voltage | 208-230 V |
| Air Filter | Yes |
| Description | Whisper Silent Air Compressor |
| Noise Output | 62 dBA |
Warranty
| Warranty | 1 Year Standard, 5 Year Extended, Extended Lifetime Limted Pump warranty |
Compliance & Certifications
| Certifications | ETL, UL, CSA |
