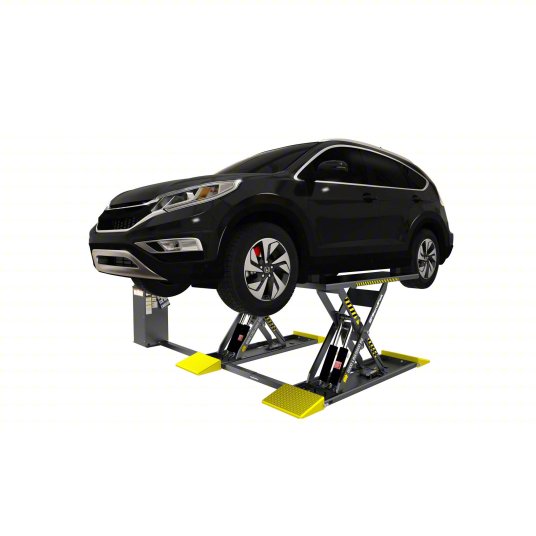

BENDPAK Vehicle Lift: 6,000 lb Load Capacity, 34 in Max Lift Ht, 5 1/4 in Min Lift Ht, 1 Lifts
Item 846FN8
Mfr. Model MDS-6LP
These mid-rise and high-rise scissor lifts mount permanently to the garage floor where vehicles can drive onto them from a collapsed position. They provide a full-vehicle hydraulic lift system and are suitable for detail and auto shops for automobiles, SUVs, and light-duty trucks.
Load Capacity
6,000 lb
6,000 lb
Maximum Lift Height
34 in
34 in
Minimum Lift Height
5-1/4 in
5-1/4 in
Overall Height
5 in
5 in
Brand
BENDPAK
BENDPAK
Lift Type
2-Runway Alignment Scissor Lift
2-Runway Alignment Scissor Lift
FeaturesAdd or Remove Ramps; Cushioned Rubber Contact Blocks; Four Hydraulic Cylinders; Hinge-Point Features Zerk Grease Fittings; Push-Button Safety Lock Release System; Solid Steel Safety Lock Bars; Stainless Steel Pneumatic Cylinders; Strong Lift From A Collapsed Position; Three Locking Positions
Lifting Actuator
Control Box
Control Box
Manufacturer Part Number
MDS-6LP
MDS-6LP
Power Source
Hydraulic
Hydraulic
For Lifting
Car
Car
Standards
ALI Certified
ALI Certified
Overall Length
92-19/32 in
92-19/32 in
Minimum Operating Pressure
50 psi
50 psi
Number of Lift Positions
3
3
Platform/Lift Arm Length
67 in
67 in
Displayed Brand
BENDPAK
BENDPAK
Frame Material
Steel
Steel
Country of Origin
China
China
