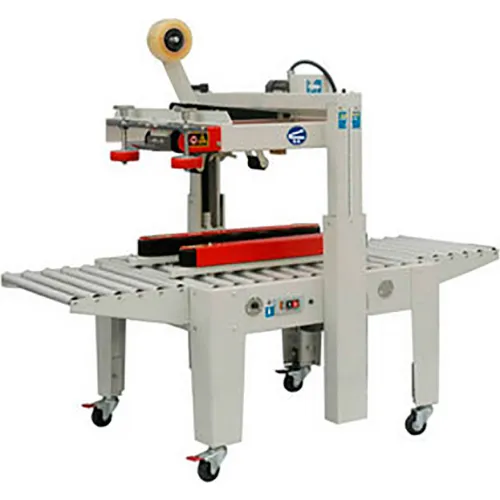

Sealer Sales® Semi-Automatic Carton Sealer w/ 2 Side & 2 Top Drive Belts
Specifications(1)
Model #: WBB3137048
MPN #: CS-5050B
Our CS-Series of carton sealers are operator fed and designed for heavy duty applications. These machines are reliable, cost-effective and durable providing savings to your production process. More importantly, these machines provide a professional looking seal. The CS-5050B Semi-Automatic Uniform Carton Sealer with Easy Manual Carton Size Adjustment has a 4-belt design (2 side and 2 top). The machine comes complete with infeed/exit conveyors, casters, power cord, and plug.
The operator simply folds the top flats of the corrugated carton and feeds it into the machine. The CS-5050B applies a single tape to both the top and bottom of the case simultaneously. The CS-5050B can be easily adjusted in only seconds to process a different size carton. Excellent for heavier boxes.
FEATURES:
- Adjustable height of table
- Heavy duty frame
- Manually adjust height and width of machine for each box size
- Suitable for heavier cartons
- Top/bottom and side driving
- Operator feeds and folds flaps into machine
- Optional: stainless steel
- Unit must ship via LTL freight only. Call us for rates.
Weights & Dimensions
| Machine Length | 69" in |
| Machine Height | 39-63" in |
| Max Box Height | 19.7 in |
| Max Box Width | 19.7 in |
| Min Box Length | 6 in |
| Tape Width | 2 in |
| Max Box Weight | 66 lbs |
| Machine Width | 32" in |
| Min Box Width | 5.1 in |
| Min Box Height | 3.9 in |
Product Details
| Assembly Required | Yes |
| Type | Top & Bottom & Side Belt Drive |
| Operating Speed | 15 Boxes/Minute |
| Color | Cream |
| Amperage | 2.45 A |
| Series | Sealer Sales |
| Wattage | 270 W |
| Voltage | 110 V |
| Manufacturers Part Number | CS-5050B |
| Brand | Sealer Sales |
Warranty
| Warranty | 6 mo |
