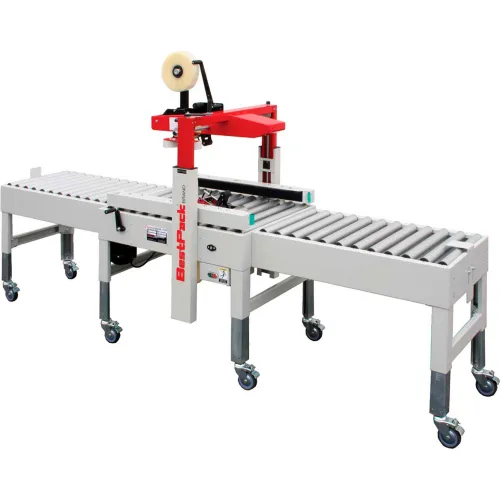

BestPack™ MSD22 Simple Pack & Seal System, Side Belt Drive, 2" Tape Head
machine tape sold separately
Model #: WBB2254690
MPN #: MSD22-2SYSTEM
This simple pack and seal system is a cost saving "Problem Solver" for your carton sealing applications. Using 2" wide tape, it seals the top and bottom cases ranging in length from 6" and up, width of 4.25-20" and height of 3.5-20.5". Includes 2" head, conveyors, legs, box stabilizer, stopper & casters.
Features:
- Heavy duty 2mm CNC cut and welded frame including upper welded legs
- Self centering belt drive system with 1 piece molded belts with V-belt guide and rollers behind the belts to reduce wear and tear on the belts, stress on the motors and increase belt and motor life
- Width/Height adjustments and the electrical on/off box can be mounted on either side of the machine
- Exclusive pop-out high speed tape with patented tab adjustment and noise reduction arm
- Exclusive 4 roller upper side compression comes standard
- No air required, electric only. 110V 60 Hz
- This product has a limited warranty of 1 year
Weights & Dimensions
| Weight | 487 lbs |
| Min Box Weight | 0.1 lbs |
| Machine Length | 39-1/2 in |
| Max Box Length | Unlimited |
| Machine Height | 70-5/16 in |
| Cord Length | 7 ft |
| Tape Width | 2 in |
| Machine Width | 32-13/16 in |
| Min Box Width | 4-1/4 in |
| Min Box Height | 3-1/2 in |
| Max Box Height | 20-1/2 in |
| Max Box Width | 20 in |
| Min Box Length | 6 in |
| Conveyor Height Adjustment | 23-1/2 - 30" |
Product Details
| Assembly Required | Yes |
| Box Belt Speed | 80 ft. Per Minute |
| Operating Speed | 40 Boxes/Minute |
| Wattage | 330 W |
| Manufacturers Part Number | MSD22-2SYSTEM |
| Brand | BestPack |
| Type | Side Belt Drive |
| Color | Gray |
| Amperage | 3 A |
| Series | MSD22 |
| Hertz | 60 Hz |
| Voltage | 110 V |
| Package Quantity | 1 |
| Description | MSD Simple Pack & Seal System |
