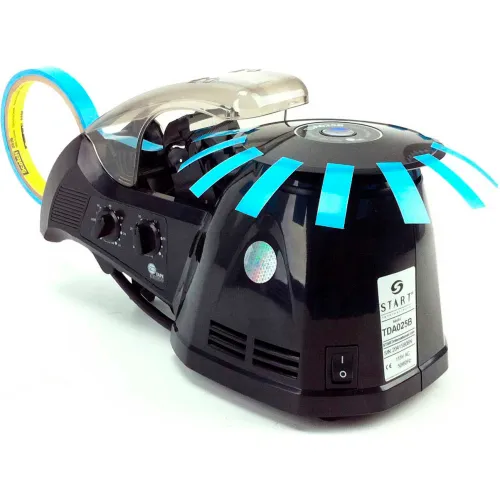

Start International Electric Carousel Tape Dispenser For 1"W Tape
Model #: WBB966562
MPN #: TDA025B
The Start International TDA025B electric carousel tape dispenser was designed for multi-operator applications. It automatically feeds and cuts tape to a definite length and unique feed system places tape on carousel for easy removal. Up to 20 pieces of tape can be cut with a touch of button.
Features:
- Ideal for 2 or more operators
- Automatically feed and cut tape to a definite length
- Unique feed system places tape on carousel for easy removal
- Accepts tape widths from 1/8" (3 mm) to 63/64" (25 mm)
- Cuts lengths from 1/8" (15 mm) to 2-3/8" (70 mm)
- Max outside diameter of roll is 5-29/32" (150mm)
- Three dispensing modes: manual, semi-automatic and automatic
- Universal core size
Weights & Dimensions
| Length | 11 in |
| Width | 2 in |
| Height | 6 in |
| Weight | 4 lbs |
| Max Tape Length | 2-3/4 in |
| Min Tape Width | 1/8 in |
| Min Tape Length | 1/2 in |
| Core Size | 1, 1-1/8, 3 in |
| Tape Roll Diameter | 5-7/8 in |
| Max Tape Width | 1 in |
Product Details
| Assembly Required | No |
| For Use With | Thin Tapes up to 1"W |
| Blade Material | Steel |
| Material | Plastic/Steel |
| Manufacturers Part Number | TDA025B |
| Number of Length Settings | Multiple (5/8" to 2-3/4") |
| Brand | Start International |
| Type | Electric Tape Dispenser |
| Color | Black |
| Amperage | Less Than 1 A |
| Hertz | 50/60 Hz |
| Feed Type | Automatic |
| Style | Electric |
| Voltage | 117 V |
| Package Quantity | 1 |
| Description | Electric Carousel Tape Dispenser |
| Frame Material | Steel |
| Cutter | Automatic |
| Load Type | Side |
