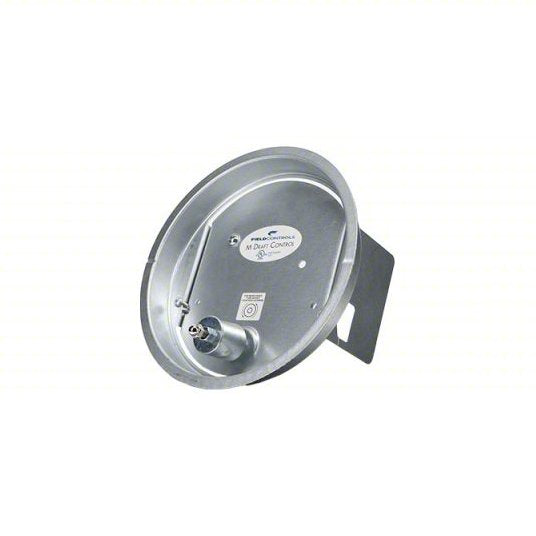

5-7"dia 6.5"H-W 8"L SS Barmtc Drft Cntrl: Natural Gas and Oil, For 5 in_6 in_7 in Duct Dia, 8 in L
Barometric draft control dampers automatically open and close in response to pressure changes in the connected exhaust duct. They help optimize the combustion by regulating the draw in the exhaust. This increases the heat transfer in the heat exchanger and helps ensure complete combustion. Their configuration is determined by the duct size, fuel used, and system airflow needs.
Brand
FIELD CONTROLS
FIELD CONTROLS
Manufacturer Part Number
6"M
6"M
Damper Application
Barometric Draft Control
Barometric Draft Control
For Duct Shape
Round
Round
Rough Opening Shape
Round
Round
Rough Opening Width
6 in
6 in
Switch Action
Normally Closed
Normally Closed
Closure Type
Gravity
Gravity
For Nominal Duct Diameter
5 in; 6 in; 7 in
5 in; 6 in; 7 in
For Fuel Type
Natural Gas and Oil
Natural Gas and Oil
Single Acting/Double Acting
Single Acting
Single Acting
Mounting Position
Horizontal; Vertical
Horizontal; Vertical
Mounting Style
Surface Mount
Surface Mount
Overall Height
6-1/2 in
6-1/2 in
Overall Width
6-1/2 in
6-1/2 in
Overall Length
8 in
8 in
Overall Diameter
6 in
6 in
Rough Opening Length
3 in
3 in
Rough Opening Diameter
6 in
6 in
Airflow Direction
Horizontal
Horizontal
Frame Depth
8 in
8 in
Frame Less Flange
28.3 sq in
28.3 sq in
Frame Material Thickness
24 ga
24 ga
Frame Material
Steel
Steel
Blade Type
Flat Blade
Flat Blade
Blade Material
Stainless Steel
Stainless Steel
Blade Seal Material
Stainless Steel
Stainless Steel
Connection Type
Press Fit
Press Fit
Counterbalanced
Yes
Yes
Color
Silver
Silver
Includes
Collar
Collar
UNSPSC
40101504
40101504
Country of Origin USA
