NUMATICS Flow Sensor: 1/2 in NPT Inlet Size, 1/2 in NPT Outlet Size, 5 Pin M12 Connector, AF2

Sale
$2,959.00

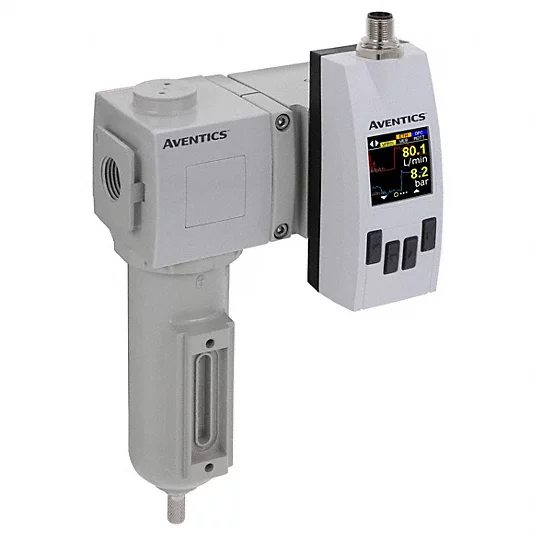

Numatics compressed air flow rate sensors have a wide flow measurement range, an integrated pressure sensor, and an OLED display to clearly show measurements, process curves, and cumulative values. Data can be communicated via customizable switch or analog outputs, or through IO-Link. Data can also be transferred directly via the Ethernet interface, making them capable of both direct and remote monitoring. Sensors can be installed within an FRL system or as a standalone unit.

Brand
NUMATICS

Inlet Size
1/2 in NPT

Outlet Size
1/2 in NPT

Digital Display Features
Colored and Rotatable OLED Display

Electrical Connections
5 Pin M12 Connector

Maximum Operating Pressure
16 bar

Operating Temperature Range
-20 °C to 50 °C

Input Voltage
30 V DC

Frame Size
652

Included Filter
5 micron Particulate Filter

Series
AF2

Air Inlet Size
1/2 in

Air Inlet Type
NPT

Air Outlet Size
1/2 in

Air Outlet Type
NPT

Air Inlet Gender
Male

Air Outlet Gender
Male

Maximum Operating Temperature
50 °C

Minimum Operating Pressure
0 bar

Minimum Operating Temperature
-20 °C

Filter Rating
5 micron

Filter Type
Particulate

Filter Bowl Guard Included
Yes

Filter Bowl Material
Polycarbonate

Filter Bowl Guard Material
Polycarbonate

Filter Bowl Capacity
60 mL

For Fluid Type
Argon; Carbon Dioxide; Compressed Air; Helium; Nitrogen

For Substance Type
Air; Nitrogen

Manufacturer Part Number
8652AVBP4JA000N

Country of Origin
USA

Item 806HF7

Mfr. Model 8652AVBP4JA000N
