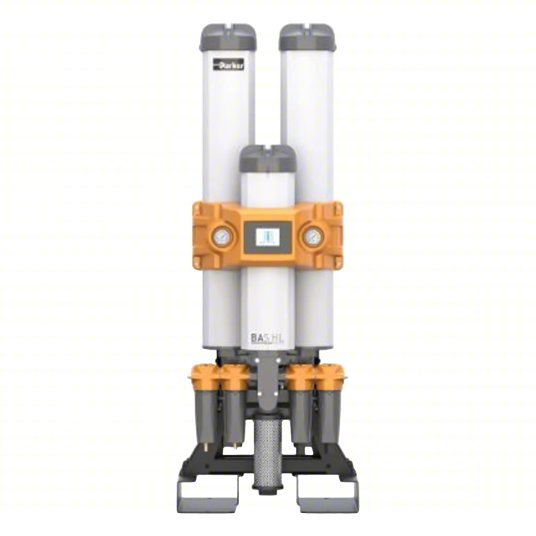

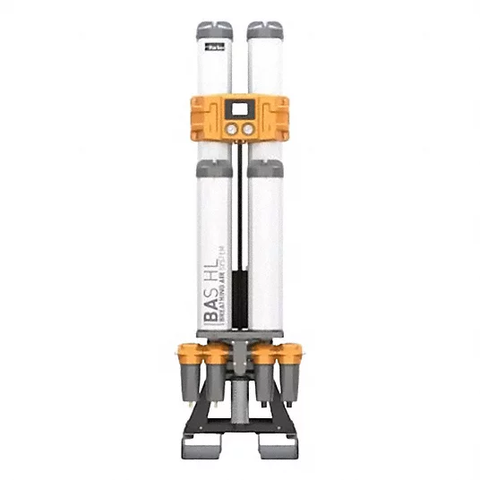

Breathing Air Dryer: 177 cfm Flow Rate, IP55, 1 1/2 in NPT, 41°F to 95°F, 58 psig to 232 psig
Compressed-air purifiers utilize multiple purification steps to treat and filter standard air contaminants fed from air compressors. They provide breathable quality compressed air. These systems are used by workers in hazardous environments who wear compressed-air breathing apparatuses in industries such as agriculture, chemical, construction, utilities, oil, and gas.
Flow Rate
177 cfm
177 cfm
IP RatingIP55
Overall Depth
27 in
27 in
Overall Height
83 in
83 in
Overall Width24.8 in
Number of Stages
7
7
Inlet Connection Size
1-1/2 in
1-1/2 in
Inlet Connection Type
NPT
NPT
IncludesOil Vapour Reduction and Catalyst Stage Filter; OIL-X Grades AO and AA Coalescing Filter; OIL-X Grades AO and AA Dry Particulate Filter
General Purpose Dry Particulate Filter Grade
AO
AO
General Purpose Dry Particulate Filter Model Number
AOPX030G
AOPX030G
General Purpose Pre-Filter Model Number
AOPX030G
AOPX030G
Dewpoint
-40 °F
-40 °F
General Purpose Pre-Filter Grade
AO
AO
High Efficiency Dry Particulate Filter Grade
AA
AA
High Efficiency Dry Particulate Filter Model Number
AAPX030G
AAPX030G
High Efficiency Filter Model Number
AAPX030G
AAPX030G
Operating Pressure - Minimum
58 psig
58 psig
Operating Pressure - Maximum
232 psig
232 psig
Operating Temperature - Minimum
41 °F
41 °F
Operating Temperature - Maximum
95 °F
95 °F
ApplicationAsbestos Removal; Confined Spaces; Demolition; Shot Blasting; Spray Painting; Tank Cleaning; Tunnelling; Welding
High Efficiency Filter Grade
AA
AA
Manufacturer Part Number
BASHL085-40N16AE
BASHL085-40N16AE
Noise Level
75 dBA
75 dBA
Supply Frequency
50/60 Hz
50/60 Hz
Supply Phase
Single
Single
Supply Voltage
85 to 265V
85 to 265V
Oil Vapor Reduction Filter Grade
OVR
OVR
Weight
562 lb
562 lb
Particulate Size - Minimum
0.01 micron
0.01 micron
StandardsCSA Z180.1; EN12021; ISO 12500-1; ISO 7183; ISO 8573-1:2010 Class 1.2.0; ISO 8573-2; ISO 8573-3; ISO 8573-4; ISO 8573-5; ISO 8573-6; OSHA; PED 2014/68/EU Fluid Group II
SeriesBAS
Brand
PARKER
PARKER
Country of Origin
United Kingdom
United Kingdom
Item 818CG3
Mfr. Model BASHL085-40N16AE
