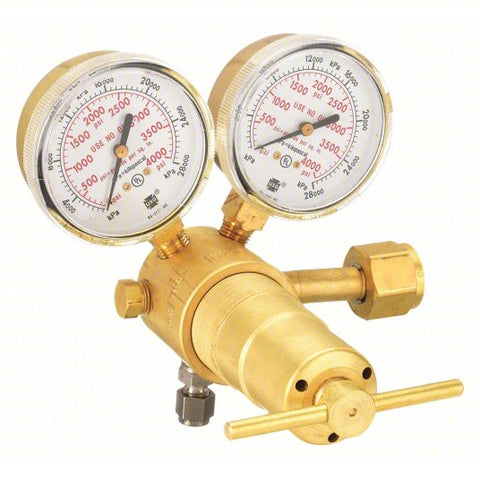

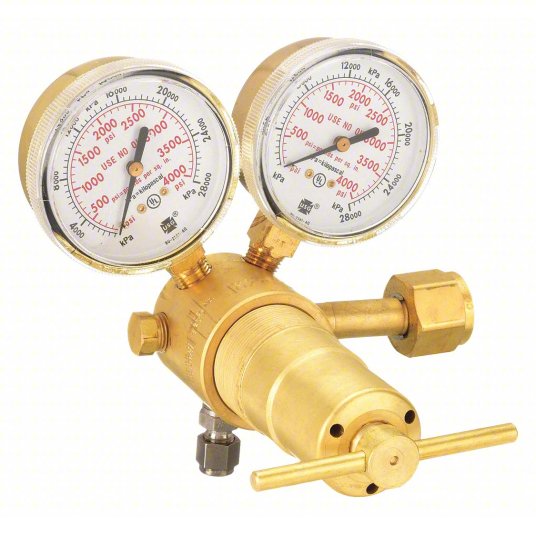

VICTOR Gas Regulator: Single Stage, CGA 540 Inlet, 1/4" Swagelok Outlet, 3,000 psig, Brass Diaphragm
Item 20UK10
Mfr. Model 0781-1445
These regulators have an internal piston sensing element instead of a diaphragm sensing element, which allows greater control of high-delivery pressure.
Brand
VICTOR
VICTOR
Manufacturer Part Number0781-1445
Regulator SeriesSR 4
For Gas Type
Oxygen
Oxygen
Mounting Type
Cylinder
Cylinder
Mounting Location
Panel
Panel
Number of Stages
Single Stage
Single Stage
CGA Number
CGA 540
CGA 540
Inlet Connection
CGA 540
CGA 540
Inlet Connection Type
NGO
NGO
Inlet Connection Gender
Male
Male
Inlet Connection Size
0.908"-14
0.908"-14
Inlet Thread Direction
Right Hand
Right Hand
Inlet Pressure (Maximum)
3,000 psig
3,000 psig
Outlet Connection
1/4" Swagelok
1/4" Swagelok
Outlet Connection Type
Swagelok
Swagelok
Outlet Connection Gender
Female
Female
Outlet Connection Size
1/4 in
1/4 in
Outlet Pressure (Maximum)
3,000 psig
3,000 psig
Outlet Pressure (Minimum)
200 psig
200 psig
Body Material
Brass
Brass
Diaphragm Material
Brass
Brass
Control Type
T-Handle
T-Handle
Flow Coefficient
0.1147
0.1147
Maximum Gauge Outlet Pressure
4,000 psig
4,000 psig
Gauge Diameter
2-1/2 in
2-1/2 in
Overall Depth
6.25 in
6.25 in
Overall Height
6.5 in
6.5 in
Overall Width
6 in
6 in
Application
High Pressure
High Pressure
FeaturesDelrin Cap Bushing for Smooth Adjustments; External Adjustable Relief Valves on F and G Range Models; Hydrogen Models Have Ventable Relief Valves; Ideally Suited for Pressure Vessel and Dead-End Testing; Sintered Inlet Filter
Standards
ETL Listed; UL252
ETL Listed; UL252
UNSPSC
40142201
40142201
Country of Origin
Mexico
Mexico
