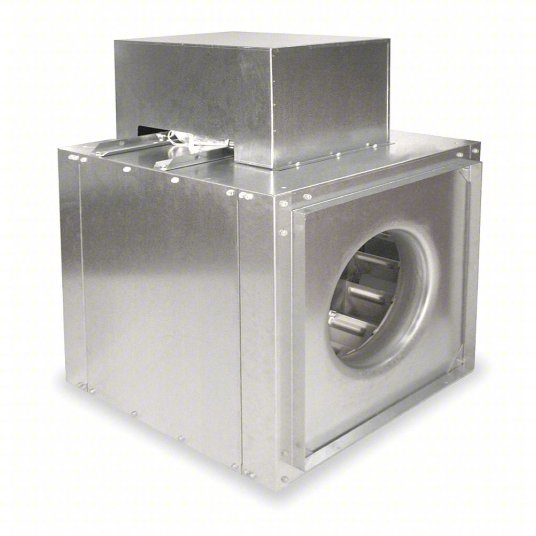

In-Line Duct Blower: 11 in Wheel, Belt Drive, Includes Drive Pack, 687 cfm @ 0.250 in SP, 1/4 hp

In-Line Duct Blower: 11 in Wheel, Belt Drive, Includes Drive Pack, 687 cfm @ 0.250 in SP, 1/4 hp

  • Sale
  • $4,789.00

In-Line Duct Blower: 11 in Wheel, Belt Drive, Includes Drive Pack, 687 cfm @ 0.250 in SP, 1/4 hp

Item 7M7R3
Mfr. Model 7M7R3

Belt-driven blowers are typically quieter than direct-drive blowers and provide more control over the blower fans' speed and airflow. These blowers come with a drive package that includes the motor, sheaves, belts, and bushings.
BrandDAYTON
Wheel TypeBackward-Inclined
Drive TypeBelt Drive
Includes Drive Package with MotorYes

AssemblyUnassembled

Wheel Diameter11 in

Airflow @ 0.000 in SP
756 cfm

Airflow @ 0.125 in SP720 cfm

Airflow @ 0.250 in SP687 cfm

Airflow @ 0.375 in SP
650 cfm

Airflow @ 0.500 in SP613 cfm

Airflow @ 0.625 in SP570 cfm

Airflow @ 0.750 in SP
524 cfm

Airflow @ 1.000 in SP424 cfm

Maximum Static Pressure1 in wc
Maximum Inlet Air Temperature
160 °F
Bearing TypeSealed Pillow Block
Sound Level16.9 sones @ 0.250 in SP and 5 ft; 17.2 sones @ 0.125 in SP and 5 ft; 17.5 sones @ 0.000 in SP and 5 ft

Wheel Material
Aluminum

Housing Material
Steel

Housing Material Finish
Galvanized
Nameplate Voltage
115/230V AC

Phase
1

Frequency
60 Hz
Current
5.6/2.8 A
Motor Horsepower
1/4 hp

Manufacturer Warranty Length1
 yr Limited
Motor Enclosure
Open Dripproof
Motor Type
Capacitor-Start
Motor Speed
1,725 RPM
Maximum Fan Speed
1,833 RPM
Includes
Access Panel
Inlet Diameter
7.7 in
Outlet Diameter
7-3/4 in
Outlet Duct Connection Height
11-3/4 in

Outlet Duct Connection Width
11-3/4 in

Inlet Duct Connection Height11-7/8 in

Inlet Duct Connection Width
11-7/8 in

Shaft Diameter
3/4 in
Overall Height15 in
Overall Width
15 in
Overall Depth
21 in
FeaturesBearing Cover and Motor Cover Included to Help in Lengthening Service Life; Collars Simplify Duct Connections, and Panels on Each Side to Provide Quick Access to Internal Fan Components
For Air Type
Clean
For Ventilation Type
Exhaust; Make-Up; Return; Supply
Mounting Orientation
Multiposition
Standards
AMCA Certified; UL 705
Airflow @ 0.250 in SP Range0 to 1
999 cfm

UNSPSC
40101601
Country of Origin
Varies
