OZ Lifting Products® Industrial Lever Hoist, 6 Ton Capacity, 20' Lift
Model #: WBB3143594
MPN #: OZIND600-20LH

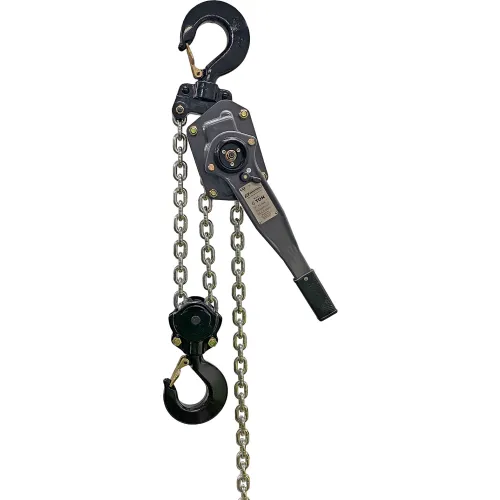

The OZ Lifting Products® Industrial Series Manual Lever Hoist features all-steel construction with a Weston-Style brake system for safety and reliability. Each unit is inspected and tested in the USA. A test certificate is included with each hoist and provides complete traceability. The OZ Lifting Products® Industrial manual lever hoists meets CE, ANSI B30.21 and AS1418.2 safety standards and features 100% load tested Grade 80 alloy chain. The steel handle with rubber grip and minimal load lifting effort makes lower and raising loads easier.
Features:
Features:
- All-steel construction
- 100% load tested grade 80 alloy chain
- Fully-enclosed gearing
- Long lasting powder coat finish
- Load sheave bearings
- Steel handle with rubber grip
- Forged alloy steel hooks
- Minimal load lifting effort
- Heavy-duty latches
- Weston-Style brake system with twin pawl design
- Zinc plated load chain
Weights & Dimensions
| Length | 7-11/16 in |
| Width | 9-1/2 in |
| Height | 24-7/16 in |
| Weight Capacity | 12000 lbs |
| Weight | 55 lbs |
| Hook Opening | 1-7/8 in |
| Handle Length | 16-1/8 in |
| Head Room | 24-7/16 in |
| Lift | 20 ft |
| Effort to Move Max Weight Capacity | 76.5 lbs |
Product Details
| Assembly Required | No |
| Type | Industrial Lever Hoist |
| Color | Gray |
| Series | Industrial |
| Material | Steel, Rubber, Zinc |
| Operation | Manual |
| Chain Falls | 2 |
| Package Quantity | 1 |
| Manufacturers Part Number | OZIND600-20LH |
| Suspension | Hook |
| Brand | OZ Lifting Products |
Warranty
| Warranty | 1 yr |
Compliance & Certifications
| Certifications | ASME B30.21, CE, AS1418.2 |
