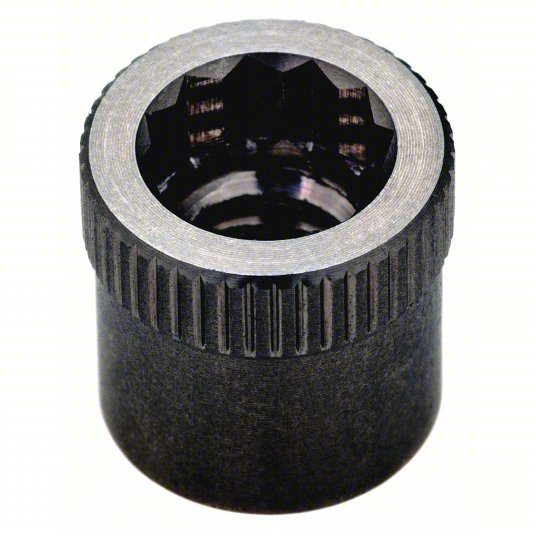

Allen Nut: M24-3.00 Thread Size, 1 17/32 in Dia, 1 17/32 in Overall Lg, Steel, Black Oxide, Knurled
Item 484Y38
Mfr. Model Z1979M
Brand AMPG
System of Measurement Inch
Thread Size M24-3.00
Overall Length 1-17/32 in
Insert Diameter 1-17/32 in
MaterialSteel
Material Grade / ClassGrade 2H
Finish Black Oxide
Body Texture Knurled
Thread Depth 20.57 mm
Thread Fit 6H
Drive Size 1 in
Thread Direction Right Hand
Thread Pitch 3 mm
Thread Style Partially Threaded
Thread Type Coarse
Drill Bit Size 1-9/16 in
Maximum Hole Diameter 1.605 in
Minimum Material Thickness 1.532 in
Material Quality Standards ASTM A194
Sub-brand INSERT NUT, ALLEN NUT
Manufacturer Part Number Z1979M
Display Qty 1
Display Sell UOMEA
UNSPS C31162802
Country of Origin USA
