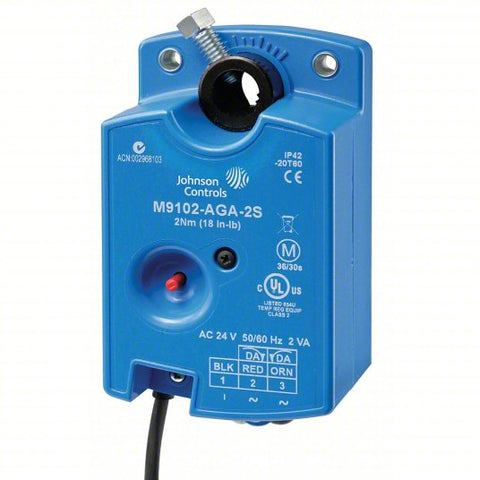

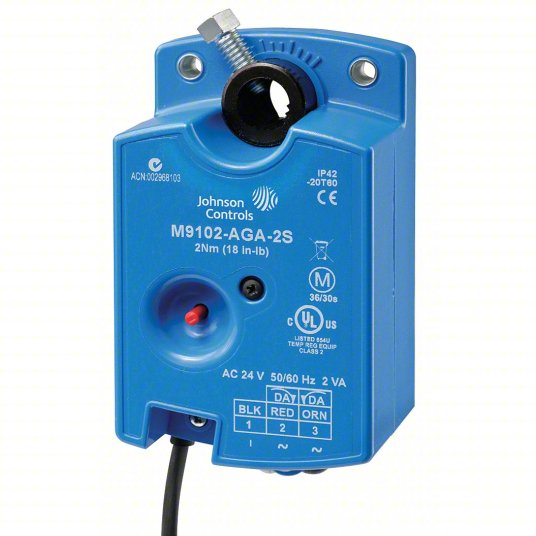

Actuator: Damper, Floating Point/On/Off, Non-Spring Return, 18 in-lb, 24V AC, Hardwired
Non-fail-safe actuators have no fail-safe mechanism to provide movement during power outages. This makes them more compact and easier to maintain than fail-safe actuators. They open and close valves and dampers for non-critical components and infrastructure.
Item 41P464
Mfr. Model M9102-IGA-2S
Manufacturer Part Number M9102-IGA-2S
Brand JOHNSON CONTROLS
Product Type Actuator
Application Damper
Spring Return Non-Spring Return
Signal Type On/Off; Floating Point
Rated Torque 18 in-lb
Input Voltage 24V AC
Power Consumption 2.6 VA
Time to Close 30 sec
Electrical Connection Type Hardwired
For Use With Building Automation Systems Building Automation System Compatible
NEMA Rating 2
IP Rating IP42
Mounting Type Direct Mount
Maximum Operating Temperature 125 °F
Minimum Operating Temperature-4 °F
Includes Anti-Rotation Bracket
Shaft Rotation CW/CCW
Stroke Degree90°
Shaft TypeSelf-Centering Clamping
Overall Height2 in
Overall Width5 in
Overall Depth2-3/4 in
Number of Auxiliary Switches0
Auxiliary Switch Included No
UNSPSC31251501
Country of Origin Mexico
