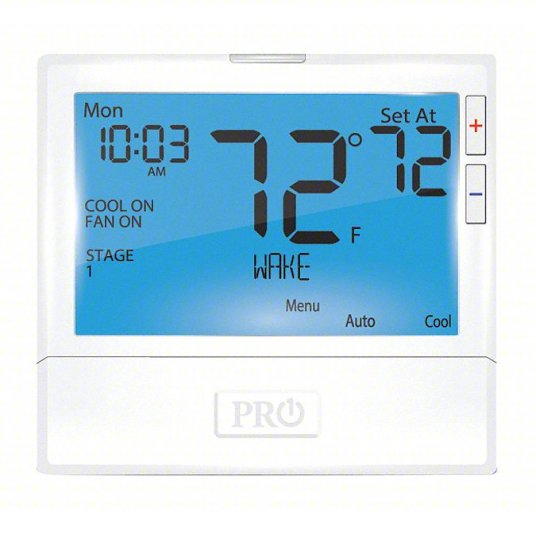

PRO1 IAQ Low Voltage Thermostat: Heat and Cool, Auto, 2 Heating Stages - Conventional System, Adj
Standard thermostats are most commonly used to control the temperature of conventional forced air systems or heat pumps in residential and light commercial settings, such as offices, restaurants, or retail stores. They're programmable and allow users to select temperature settings for different times of the day or different days of the week.
- Brand
- PRO1 IAQ
- Application
- Heat and Cool
- Changeover Type
- Automatic
- Compatible System Type
- Electric Forced Air Furnaces; Gas Forced Air Furnaces; Heat Pump with Aux; Heat Pump without Aux; Millivolt; PTAC
- Control Type
- Push Button
- Dehumidification Control
- Yes
- Differential Type
- Adjustable
- Digit Size
- Easy Read
- Display Type
- Digital
- Dual Transformer Compatible
- Yes
- Fan Settings
- Auto-On
- Humidification Control
- Yes
- Includes
- Mounting Hardware
- Includes Positive Off
- Yes
- Key Pad Lockout
- Yes
- Mounting Direction
- Horizontal
- Minimum Control Temperature
- 44 °F
- Maximum Control Temperature
- 90 °F
- Number of Cooling Stages - Conventional System
- 3
- Number of Heating Stages - Conventional System
- 2
- Number of Cooling Stages - Heat Pump System
- 3
- Number of Heating Stages - Heat Pump System
- 5
- Overall Depth
- 1-1/8 in
- Overall Height
- 4-3/8 in
- Overall Width
- 4-11/16 in
- Programming Capability
- 5-1-1; 7 Day
- Shape
- Rectangle
- System Settings
- Cool-Heat-Off
- Temperature Differential
- 0.2° to 2.0°F
- Temperature Readout
- Yes
- Temperature Scale
- Fahrenheit/Celsius
- Terminal Designations
- B; C; D; G; H; O; RC; RH; S1; S2; W/E; W2; Y; Y2
- Thermostat Type
- Low Voltage
- Voltage
- 24V AC
- Temperature settings per day
- 2; 4
- Backlit Screen
- Yes
- Backlit Screen Color
- Blue
- Battery Backup
- Yes
- Battery Type
- (2) AA Batteries
- Differential Cool
- 0.2 °F; 2 °F
- Differential Heat
- 0.2 °F; 2 °F
- Electrical Connection Type
- Hardwired
- Filter Change Reminder
- Yes
- Frequency
- 50 Hz; 60 Hz
- Housing Color
- White
- Includes Batteries
- Yes
- Low Battery Indicator
- Yes
- Maximum Operating Humidity
- 90 %
- Minimum Operating Temperature
- 32 °F
- Maximum Operating Temperature
- 105 °F
- Millivolt Compatible
- Yes
- Sensor Location
- Remote
- Smart Connectivity
- No Connectivity
- Temperature Limiting
- Yes
- Temperature Sensitivity
- +/-1°F
- Temporary Program Override
- Yes
- Temporary Temperature Hold
- Yes
- Key Features
- Menu Driven Programming; Private Label Badge System; Room Temperature Calibration Adjustment
- Mounting Location
- Junction Box; Wall
- UNSPSC
- 41112209
- Country of Origin
- Mexico
- Item
- 60FD47
- Mfr. Model
- T855SH
