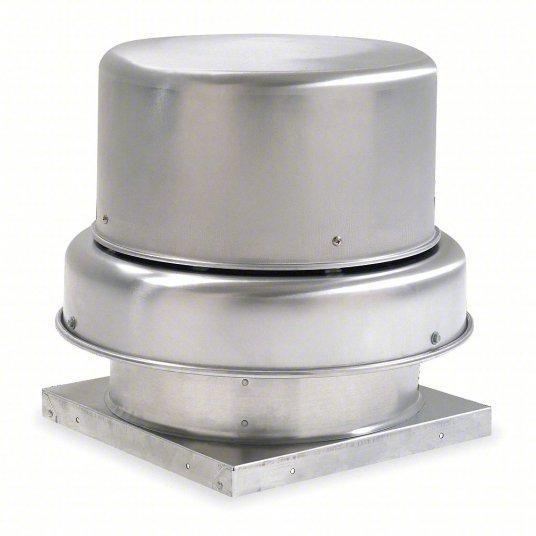

Axial Downblast Roof Exhaust Fan: Belt Drive, Includes Drive Pack, 20 in Blade, 3,018 cfm, ODP, 3
- Item
- 7A415
- Mfr. Model
- 7A415
- Brand
- DAYTON
- For Air Type
- Clean Air
- Drive Type
- Belt Drive
- Includes Drive Package with Motor
- Yes
- Assembly
- Unassembled
- Blade Diameter
- 20 in
- Mount Type
- Roof Curb
- Mounting Location
- Roof
- Exhaust Airflow @ 0.000 in SP
- 3,018 cfm
- Exhaust Airflow @ 0.125 in SP
- 2,610 cfm
- Exhaust Airflow @ 0.250 in SP
- 2,109 cfm
- Exhaust Airflow @ 0.375 in SP
- 1,612 cfm
- Maximum Static Pressure
- 3/8 in wc
- Nameplate Voltage
- 208/230/460V AC
- Phase
- 3
- Frequency
- 60 Hz
- Current
- 1.5-1.6/0.8 A
- Electrical Connection
- Power Cord
- Motor Horsepower
- 1/3 hp
- Brake Horsepower
- 17/50 hp
- Maximum Fan Speed
- 875 RPM
- High-Efficiency Motor
- No
- Motor Enclosure
- Open Dripproof
- Motor Location
- Out of Airstream
- Speed Controllable
- No
- Number of Speeds
- 1
- Blade Material
- Steel
- Number of Blades
- 5
- Housing Material
- Aluminum
- Housing Material Fabrication
- Spun
- Maximum Ambient Temperature
- 120 °F
- Maximum Inlet Air Temperature
- 120 °F
- Bearing Type
- Regreasable Pillow Block
- Base Shape
- Square
- Base Height
- 1-3/4 in
- Base Width
- 30 in
- Base Length
- 30 in
- Housing Length
- 35.3 in
- Housing Width
- 35.3 in
- Overall Height
- 30-1/2 in
- Overall Width
- 35-1/4 in
- Overall Length
- 35-1/4 in
- Overall Diameter
- 35.3 in
- Damper Size
- 23 x 23 in
- Compatible Damper Part Number
- 4HX67
- Standards
- AMCA Sound and Air; UL/cUL 705
- Application
- Industrial and Commercial Applications
- Includes
- Drive Package; NEMA 1 Junction Box
- Features
- Fully Rolled Bead on the Windband Ensures Stability and Provides Rigidity for Lifting and Transporting; NEMA 1 Junction Box Located in Motor Enclosure
- Resistance Properties
- Weather Resistant
- Manufacturer Part Number
- 7A415
- UNSPSC
- 40101502
- Country of Origin
- Varies
- Item
- 7A415
- Mfr. Model
- 7A415
Clean air fans with drive exhaust odorous, hot, or stale air from a structure. These fans come with a drive package that includes a motor, sheaves, belts, and bushings. Belt-drive fans are typically quieter and provide more control over the fans' blade speed and airflow than direct-drive fans.
-
.
