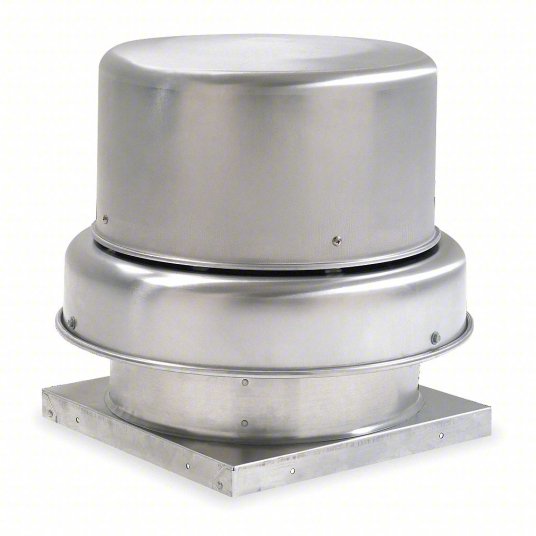

Axial Downblast Roof Exhaust Fan: Belt Drive, Includes Drive Pack, 20 in Blade, 3,456 cfm, ODP, 1

  • Sale
  • $2,617.00


Axial Downblast Roof Exhaust Fan: Belt Drive, Includes Drive Pack, 20 in Blade, 3,456 cfm, ODP, 1

Brand
DAYTON
For Air Type
Clean Air
Drive Type
Belt Drive
Includes Drive Package with Motor
Yes
Assembly
Unassembled
Blade Diameter
20 in
Mount Type
Roof Curb
Mounting Location
Roof
Exhaust Airflow @ 0.000 in SP
3,456 cfm
Exhaust Airflow @ 0.125 in SP
3,092 cfm
Exhaust Airflow @ 0.250 in SP
2,743 cfm
Exhaust Airflow @ 0.375 in SP
2,228 cfm
Exhaust Airflow @ 0.500 in SP
1,795 cfm
Maximum Static Pressure
1/2 in wc
Nameplate Voltage
115/208-230V AC
Phase
1
Frequency
60 Hz
Current
8.8/4.2-4.4 A
Electrical Connection
Power Cord
Motor Horsepower
1/2 hp
Brake Horsepower
13/25 hp
Maximum Fan Speed
1,002 RPM
High-Efficiency Motor
No
Motor Enclosure
Open Dripproof
Motor Location
Out of Airstream
Speed Controllable
No
Number of Speeds
1
Blade Material
Steel
Number of Blades
5
Housing Material
Aluminum
Housing Material Fabrication
Spun
Maximum Ambient Temperature
120 °F
Maximum Inlet Air Temperature
120 °F
Bearing Type
Regreasable Pillow Block
Base Shape
Square
Base Height
1-3/4 in
Base Width
30 in
Base Length
30 in
Housing Length
35.3 in
Housing Width
35.3 in
Overall Height
30-1/2 in
Overall Width
35-1/4 in
Overall Length
35-1/4 in
Damper Size
23 x 23 in
Compatible Damper Grainger Part Number
4HX67
Standards
UL/cUL 705
Application
Industrial and Commercial Applications
Includes
Drive Package; NEMA 1 Junction Box
Features
Fully Rolled Bead on the Windband Ensures Stability and Provides Rigidity for Lifting and Transporting; NEMA 1 Junction Box Located in Motor Enclosure
Resistance Properties
Weather Resistant
Manufacturer Part Number
7A400
UNSPSC
40101502
Country of Origin
Varies (subject to change)

Product Description

Clean air fans with drive exhaust odorous, hot, or stale air from a structure. These fans come with a drive package that includes a motor, sheaves, belts, and bushings. Belt-drive fans are typically quieter and provide more control over the fans' blade speed and airflow than direct-drive fans.


Item
7A400
Mfr. Model
7A400
