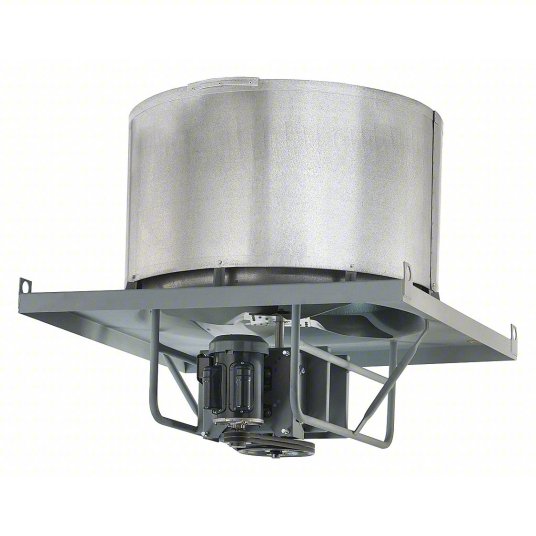

Axial Upblast Roof Exhaust Fan: Belt Drive, 30 in Blade, 10,668 cfm, TEFC, 1 hp, 115/230V AC, 1
Brand AMERICRAFT FAN
For Air Type Clean Air
Drive Type Belt Drive
Includes Drive Package with Motor Yes
Assembly Assembled
Blade Diameter30 in
Exhaust Airflow @ 0.000 in SP10,668 cfm
Exhaust Airflow @ 0.100 in SP10,668 cfm
Exhaust Airflow @ 0.125 in SP9,959 cfm
Exhaust Airflow @ 0.250 in SP8,626 cfm
Exhaust Airflow @ 0.375 in SP6,828 cfm
Exhaust Airflow @ 0.500 in SP5,184 cfm
Maximum Static Pressure1/2 in wc
For High-Static Pressure ApplicationsNo
Nameplate Voltage115/230V AC
Phase1
Current6.4 A
Frequency60 Hz
Motor Horsepower1 hp
Brake Horsepower73/100 hp
Maximum Fan Speed975 RPM
Motor Speed975 RPM
Speed ControllableNo
Number of Speeds1
Motor EnclosureTotally Enclosed Fan Cooled
High-Efficiency MotorNo
Motor LocationOut of Airstream
Housing MaterialSteel
Housing FinishGalvanized
Blade MaterialSteel
Number of Blades4
Maximum Inlet Air Temperature104 °F
Maximum Ambient Temperature104 °F
Mount TypeRoof Curb
Mounting LocationRoof
Bearing TypeBall Bearing Pillow Block
Damper Size36 x 36 in
Base ShapeSquare
Base Height2-1/2 in
Base Length45 in
Base Width45 in
Housing Length36 in
Housing Width36 in
Overall Height45-1/4 in
Overall Width45 in
Overall Depth45 in
Overall Diameter30 in
Sound Level18 sones @ 0.125 in SP and 5 ft; 18 sones @ 0.250 in SP and 5 ft
ApplicationDesigned for General Ventilation in Production or Warehouse Areas Where Efficient Quiet Air Flow is Required
Manufacturer Part NumberBRV-830-1-1-TEFC
Blade FinishGalvanized
FeaturesButterfly Damper Section, Damper Blades Open When Fan is Energized and Close Weathertight When Unit is Off; Dampers Rotate in Nylon Bearings on a Stainless Steel Axle; Ruggedly Constructed Steel Curb Cap Including Spun Venturi Section for Efficient Air Flow
UNSPSC40101502
Country of OriginUSA (subject to change)
- Product Description
-
Clean air fans with drive exhaust odorous, hot, or stale air. These fans come with a drive package that includes a motor, sheaves, belts, and bushings. Belt-drive fans are typically quieter and provide more control over the fans' blade speed and airflow than direct-drive fans.
Item 33TD83
Mfr. Model BRV-830-1-1-TEFC
