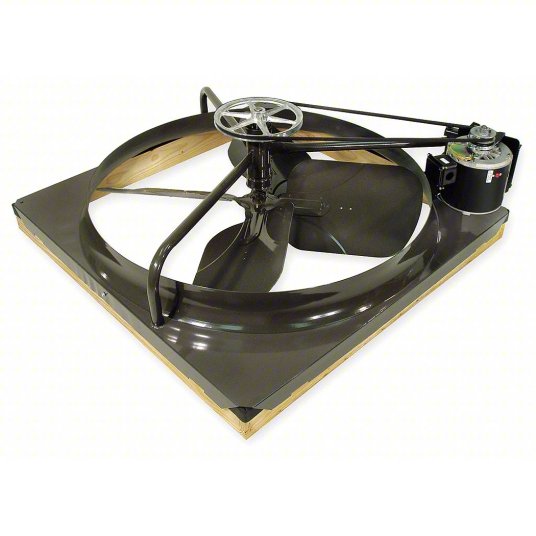

Whole House Fan: Ceiling Mount, 24 in Blade, 5,600 cfm Max., 800 sq ft Coverage, Belt Drive, 115V AC

Whole House Fan: Ceiling Mount, 24 in Blade, 5,600 cfm Max., 800 sq ft Coverage, Belt Drive, 115V AC

  • Sale
  • $1,098.00

Whole House Fan: Ceiling Mount, 24 in Blade, 5,600 cfm Max., 800 sq ft Coverage, Belt Drive, 115V AC

Brand  DAYTON
Blade Diameter   24 in
Maximum Coverage Area   800 sq ft
Maximum Airflow   5,600 cfm
Maximum Noise Level   14 sones
Bearing Type  Ball Bearing
Blade Material   Steel
Drive Type   Belt Drive
Fan StyleWhole-House
For Cut-Out Height  30 in
For Cut-Out Width  30 in
Full Load Current   6.7 A
Number of Speeds  2
Housing Material  Steel
Motor Enclosure Open Dripp roof
Motor Horsepower1/3 hp
Motor Speed560 RPM
Motor Type  Split-Phase
Mounting Location  Ceiling
Nameplate Voltage115V AC
Number of Blades4
Phase1
Rough Opening Type  Square
Speed Controllable  Yes
Standards  UL Listed
Wattage335 W
For High-Static Pressure Applications  No
High-Efficiency Motor  No
Low Noise  No
UNSPSC40101604
Country of Origin USA (subject to change)
Product Description

These ceiling-mounted whole-house fans cool the living space of a home by exhausting hot or humid air into the attic and drawing in fresh outside air through open windows or doors. They are mounted through the ceiling surface next to a ceiling joist or rafter.

Item 2EAX5
Mfr. Model 2EAX5
