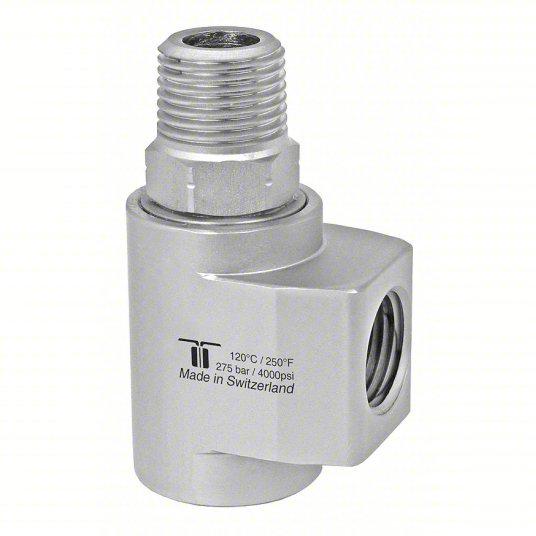

Rotary Union: Elbow, Nickel-Plated Brass, 1 Passages, 1/2 in NPTF Rotating Shaft, Right Hand, 304
Stainless steel rotating joints and unions resist corrosion and withstand high temperatures. They are often used in harsh environments exposed to damp conditions such as industrial cleaning applications.
- Item
- 40E985
- Mfr. Model
- 43.364
- Brand
- MOSMATIC
- Fitting Material
- Brass
- Fitting Material Finish
- Nickel-Plated
- Fitting Type
- Elbow
- Seal Material
- Nitrile Rubber
- Rotating Shaft Connection Type
- NPTF
- Rotating Shaft Thread Size
- 1/2 in
- Shaft Thread Length
- 19/32 in
- Stationary Port Connection Type
- NPTF
- Stationary Port Thread Size
- 1/2 in
- Flow Direction
- Single-Flow
- Maximum Speed
- 200 RPM
- Thread Rotation
- Right Hand
- Maximum Operating Temperature
- 250 °F
- Bearing Type
- Radial Ball Bearings
- Body Diameter
- 1.77 in
- Overall Length
- 1.77 in
- Overall Width
- 1.26 in
- Standards
- ISO 9001
- Number of Passages
- 1
- Internal Fitting Material Grade
- 304
- Internal Fitting Material
- Stainless Steel
- Internal Material
- 304 Stainless Steel
- UNSPSC
- 40142320
- Country of Origin
- Switzerland
