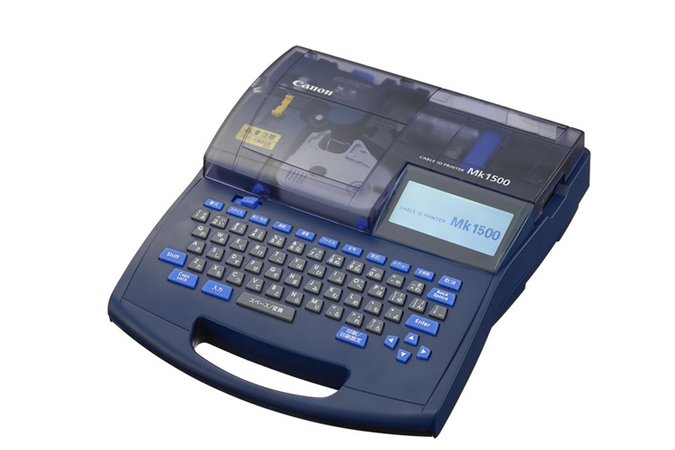

Mk1500
SKU: 3230B020AA
The MK1500 can print high speed precise characters, up to 25mm per second and 300 dpi, onto a wide range of media including tubes, label/wrap-around tapes, and strips, and also offers thermal printing durability. With a bright, large backlit LCD display, user-friendly keyboard, and automatic full and half-cutting, it offers smooth and easy printing from start to finish. The MK1500 offers customers an affordable running cost by utilizing generic media for labels.
- MK1500 Printer
- AC Adapter
- Power Cord
- Tube Attachment
- Ribbon Cassette, Black
- Operator Manual CD-Rom
- Packing List & FCC Notice
- Product Safety Notice
- Warranty
Fast Print Speed and Wide Range of Media
With a print speed up to 25mm per second, and a wide range of media including tubes, label/wrap-around tapes, and strips, the MK1500 ensures fast, flexible and high-quality output. When printing a 20mm tube with 5 full-size characters; in consecutive print mode and with fast cutting, the MK1500 is able to deliver an impressive 35 pieces every minute.
User-Friendly Keyboard and Bright, Large Backlit LCD Display
Experience total ease of use with the printer's user-friendly keyboard and bright, large backlit LCD screen with a display capacity of 10 characters/line x 2 lines at full-width or 20 characters/line x 2 lines at half-width. All necessary information such as ink ribbon type and remaining amount can be read clearly at a glance.
Full/Half Automatic Cut with Adjustable Depth Control and Cutting Speeds
The convenient features that give high-quality finishes are Full/Half Automatic Cut, Depth Control and Cutting Speed. All these features are selectable from the control panel making each job customizable to your needs.
Various print patterns, such as framing and selective character orientation are also available. Additionally, the MK1500 can be set to perform consecutive printing of the same text on every segment and serial printing, which allows for numbers to be printed in automatic increments as segments are completed.
Precise Print Length Adjustment
The print length can be adjusted in steps of 0.01%. Precise pitch control is useful in creating an indication plate for terminal blocks.
Printer | |
Printing Method | Thermal Transfer Method |
Print Speed (up to) | Tube: High speed mode: 25 mm/sec Standard speed mode: 18.5 mm/sec Low speed mode: 12.5 mm/sec Label: High speed mode: 25 mm/sec Standard/Low speed mode: 12.5 mm/sec |
Print Resolution (Up to) | 300 dpi |
Ink Compatibility | Ribbon IC cassette (black, white) Length - black: 100 m, white: 85 m |
Maximum Printable Area | Input data: 10 characters à 2 lines (two-byte characters), or 20 characters x 2 lines (one-byte characters) |
Paper Compatibility | Media Types: Tube: Commercially available PVC round tube*3 (Inner diameter: 2.5 mm to 5.2 mm, thickness: 0.5 mm) Label Tape Cassette (white, yellow, silver) - width: 6 mm, 9 mm, 12 mm, length: 30 m (27 m for silver)*4 Adjustable range of cut length: 8 mm to 150 mm*4 Wrap Around Tape: Cassette (white in the areas to be printed, transparent in other areas) Winding length: 8 m, length: 33 mm, width: 8 mm to 150 mm (adjustable by the cut length setting) |
General | |
Standard Interface | - |
Power Source | AC adapter (100 VAC - 240 VAC, 50/60 Hz) |
Power Consumption (approx.) | 12.5 W |
Dimension (W x D x H) | Width: 250 mm x Depth: 300 mm x Height: 85 mm |
Weight | 2 kg |
Operating Temperature: | Temperature: 15°C to 32.5°C, Humidity: 10% to 85% |
