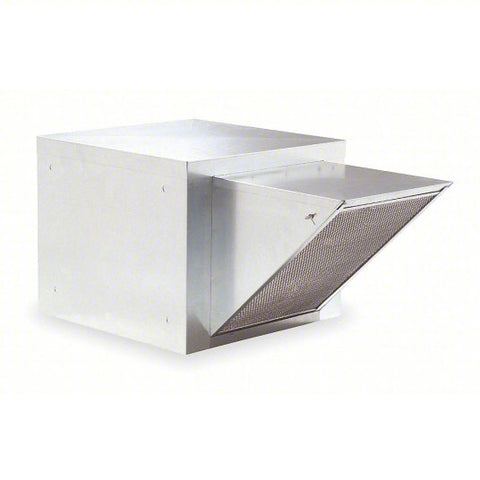

Centrifugal Roof Supply Fan: 15 1/2 in Wheel, 3,899 cfm, 5/8 in wc Max., ODP, 3/4 hp, 1 Ph, Roof
- Brand
- DAYTON
- Drive Type
- Belt Drive
- Includes Drive Package with Motor
- Yes
- Assembly
- Unassembled
- Wheel Diameter
- 15-1/2 in
- Supply Airflow @ 0.000 in SP
- 3,899 cfm
- Maximum Static Pressure
- 5/8 in wc
- Maximum Inlet Air Temperature
- 120 °F
- Nameplate Voltage
- 115/208-230V AC
- Phase
- 1
- Motor Enclosure
- Open Dripproof
- Motor Horsepower
- 3/4 hp
- Brake Horsepower
- 81/100 hp
- Motor Speed
- 1,725 RPM
- Maximum Fan Speed
- 605 RPM
- Frequency
- 60 Hz
- Current
- 11.6/5.9 to 5.8 A
- Speed Controllable
- No
- Number of Speeds
- 1
- Bearing Type
- Sealed Pillow Block
- Mount Type
- Roof Curb
- Mounting Location
- Roof
- Wheel Type
- Forward Curved
- Wheel Material
- Steel
- Filter Material
- Aluminum
- Number of Filters
- 2
- Filter Area
- 3-3/4 sq ft
- Filter Housing Height
- 27-1/2 in
- Filter Housing Width
- 28-1/8 in
- Filter Housing Depth
- 29-1/4 in
- Housing Material
- Steel
- Base Shape
- Square
- Base Height
- 1.5 in
- Base Width
- 34-1/2 in
- Base Length
- 34-1/2 in
- Overall Height
- 32 in
- Overall Length
- 34-1/2 in
- Overall Width
- 63-3/4 in
- Includes
- Drive Package; Washable Aluminum Filters
- Application
- Commercial Kitchen; Institutional Buildings
- Spark Resistant Construction Type
- A
- Standards
- AMCA Sound and Air; UL/cUL 705
- Compatible Curb Part Number
- 2RB80; 2ZV84; 3C438; 4C455; 4HX42; 4HX50
- Housing Finish
- Galvanized
- Features
- Air Handling Quality Bearings Meet Minimum of L10-100000 Hours; Neoprene Isolators Minimize Vibration and Noise
- UNSPSC
- 40101501
- Country of Origin
- Varies (subject to change)
-
- Product Description
-
Belt-drive filtered supply fans provide filtered supply air to indoor commercial spaces. These fans come with a drive package that includes a motor, sheaves, belts, and bushings. They feature washable aluminum filters and a weather hood that makes maintenance simple and fast. Belt-drive fans are typically quieter and provide more control over the fans' blade speed and airflow than direct-drive fans.
- Item
- 7D506
- Mfr. Model
- 7D506
