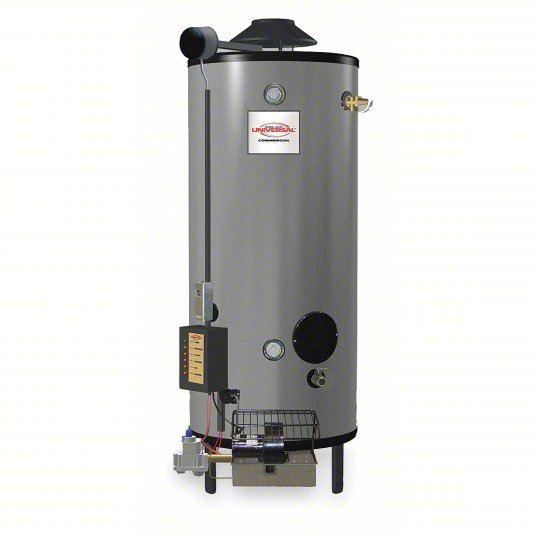

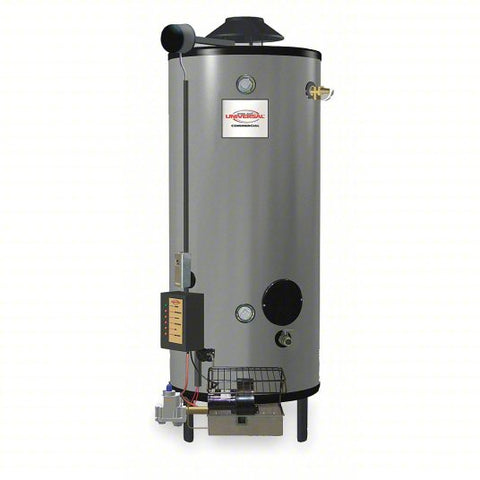

Commercial Gas Water Heater: Natural Gas, Low NOx, 100 gal, 199,900 BTU, 73.06 in Ht
- Item
- 3CFJ5
- Mfr. Model
- GN100-200
- Brand
- RHEEM-RUUD
- Manufacturer Part Number
- GN100-200
- Recovery Rate @ Rise
- 138 gph @ 140°F; 149 gph @ 130°F; 162 gph @ 120°F; 176 gph @ 110°F; 194 gph @ 100°F; 215 gph @ 90°F; 277 gph @ 70°F; 388 gph @ 50°F
- Market
- Commercial
- Gas Inlet Size
- 3/4 in
- Ignition Type
- Direct Spark to Pilot
- Maximum Delivered Temperature
- 180 °F
- Maximum Water Pressure
- 150 psi
- Fuel Type
- Natural Gas
- Low NOx
- Yes
- Water Connection Location
- Side
- Vent Connection Size
- 6 in
- Vent Type
- Standard
- Maximum Heating Capacity
- 199,900 BTU/ft/sq ft/hr/° F
- First Hour Rating
- 264 gal
- Maximum Recovery Flow Rate
- 485 gph @ 40°F
- Tank Diameter
- 30.25 in
- Hot Outlet Size
- 1-1/2 in
- Overall Height
- 73.06 in
- Operating Voltage
- 120V AC
- Included Valves
- Temperature and Pressure Relief
- Standards
- ANSI; ASHRAE; CEC; Exceed Thermal Efficiency and Standby Loss Requirements; Exceeds Energy Efficiency Codes
- Tank Capacity
- 100 gal
- Manufacturer Warranty Length
- 1 yr Parts; 3 yr Limited Tank
- Features
- Full Port/Full Flow Brass Drain Valve; LED Diagnostic System
- Height to Gas Inlet
- 7 in
- Height to T and P Valve
- 66.12 in
- Height to Cold Inlet
- 23.25 in
- Minimum Delivered Temperature
- 100 °F
- Height to Hot Outlet
- 57.5 in
- Maximum Altitude
- 8,000 ft
- Thermal Efficiency
- 80 %
- UNSPSC
- 40101825
- Country of Origin
- USA (subject to change)
-
- Product Description
-
General purpose commercial gas water heaters are commonly used for moderate demand applications.
-
