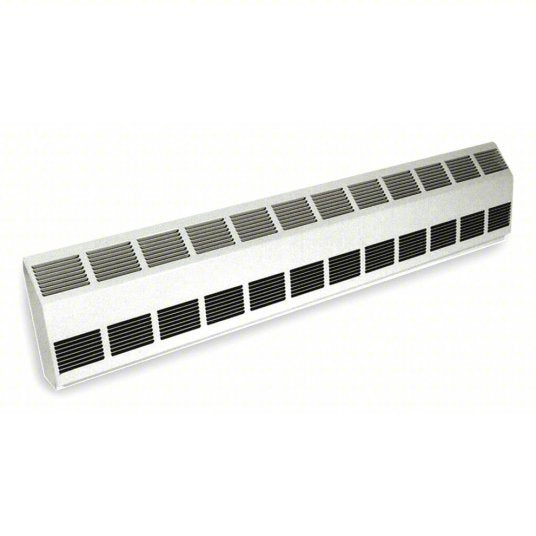

Electric Baseboard Heater: Commercial Grade, 1125W/1500W
Item 3UH11
Mfr. Model 3UH11
Standard electric baseboard heaters work by convection and have a heating element encased in a metal sheath surrounded by aluminum fins to transfer heat. They install along baseboards to warm rooms and small spaces in buildings such as multifamily housing or offices. These heaters require a thermostat to control heat settings.
Brand QMARK
Duty Rating Commercial Grade
Wattage Output 1125W/1500W
Thermostat Included No
Housing Color Beige
Housing Style Slope Top
Voltage 208/240V AC
Heating Capacity 3840/5118 BtuH
Overall Length 72 in
Overall Height 10 in
Overall Depth 3-1/4 in
Phase 1
Amperage 5.4/6.3A
Automatic Fan Delay (On/Off)No
Building Management System Compatible No
Control Type Thermostat
Disconnect Switch No
Frequency 60 Hz
Heating Method Convection
Hold Function No
Housing FinishEnamel
Housing MaterialSteel
IncludesBuilt in Cable Clamp; Grounding Wire Pigtail in Both Junction Boxes; High Temperature Safety Limit Switch; Pre Notched Guide Marks in Rear of Cabinet
Key FeaturesOverheat Protection
NEMA Plug ConfigurationHardwired
Programming CapabilityNot Programmable
Remote Control FunctionsNo Remote Control Included
Safety Tip-Over Switch IncludedNo
Setback Control No
Smart Connectivity No Connectivity
StandardsUL Listed, C-UL Listed
Tamper Resistant No
Thermal Overheat ProtectionAutomatic Reset
Thermostat Contact Type Double Pole
UNSPSC 40101821
Country of Origin USA
