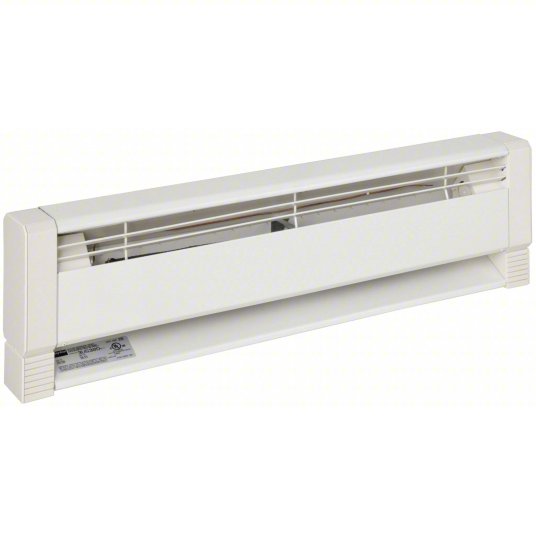

Electric Baseboard Heater: Commercial Grade, 375W/500W
Oil-filled electric baseboard heaters work by convection and have an oil-filled heating element that minimizes temperature swings and provides residual heat even after the unit is shut off. They're installed along baseboards to warm rooms and small spaces in buildings such as multifamily housing or offices. These heaters are hardwired and require a thermostat to control heat settings
Brand DAYTON
Duty Rating Commercial Grade
Wattage Output 375W/500W
Thermostat Included No
Housing Color White
Housing Style Conventional
Voltage 208/240V AC
Heating Capacity 1280/1706 BtuH
Overall Length 28 in
Overall Height 8-3/8 in
Overall Depth 3 in
Phase 1
Amperage 2.1/1.8A
Automatic Fan Delay (On/Off) No
Building Management System Compatible No
Control Type Thermostat
Disconnect Switch No
Frequency 60 Hz
Heating Method Convection
Hold Function No
Housing Finish Enamel
Housing Material Steel
IncludesBuilt in Cable Clamp; Grounding Wire Pigtail in Both Junction Boxes; High Temperature Safety Limit Switch; Pre Notched Guide Marks in Rear of Cabinet
Key Features Overheat Protection
NEMA Plug Configuration Hardwired
Programming CapabilityNot Programmable
Remote Control FunctionsNo Remote Control Included
Safety Tip-Over Switch IncludedNo
Setback Control No
Smart Connectivity No Connectivity
StandardsUL Listed, C-UL Listed
Tamper Resistant No
Thermal Overheat ProtectionAutomatic Reset
Thermostat Contact TypeDouble Pole
UNSPSC 40101822
Country of Origin USA
Item 3UG30
Mfr. Model 3UG30
