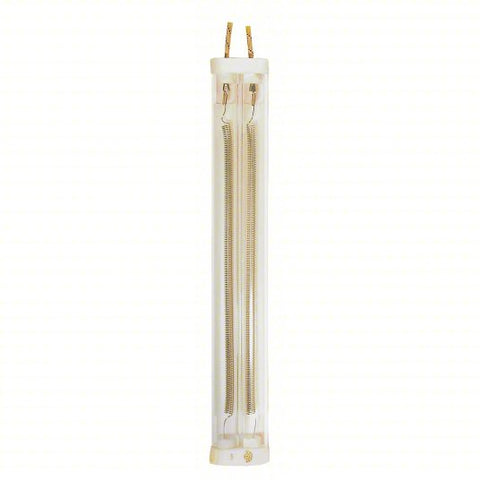

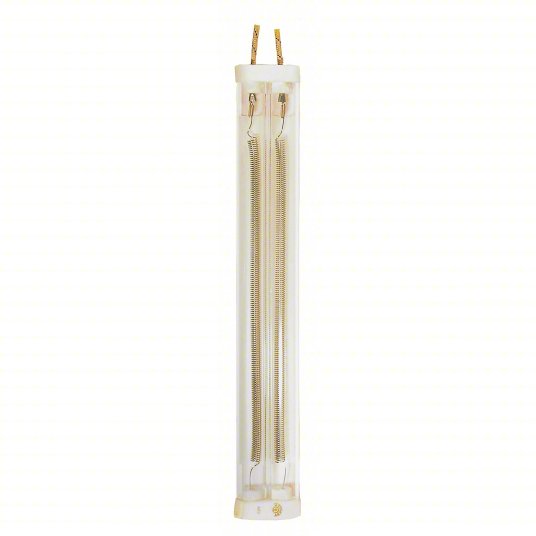

Electric Process Heater Replacement Element: Linear, 5,000 W Watt Output, 230V AC
These elements are direct replacements for worn or damaged Gemini heating elements in Tempco linear radiant process heaters. They consist of metal coils housed in a twin-bore quartz tube that radiate heat when supplied with electricity. They heat up quickly and do not have a back coating, so they provide 360° heat. These elements are used to warm, dry, or cure materials and objects.
Brand TEMPCO
Wattage Output 5,000 W
Voltage230V AC
For Use WithMfr. No. CRA80031
Overall Length83-1/2 in
Diameter9/16 in
MaterialQuartz
Amperage21.7 A
ColorClear
Connection TypeTerminal Block
Fits Heater TypeTwin Bore Infrared Heaters
Heater Mounting Position Horizontal Burn
Shape Linear
UNSPSC40101824
Country of Origin USA
Item 4TDC7
Mfr. Model GEM20023
